Product Details:
Payment & Shipping Terms:
|
| Type: | Gabion | Material: | Hot Dipped Galvanized Wire |
|---|---|---|---|

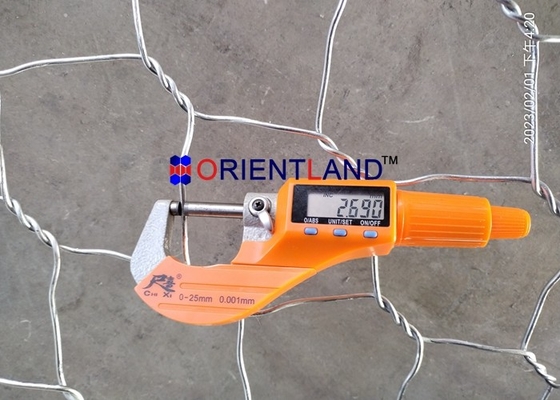

| Hole Shape: | Hexagonal | Wire Gauge: | 2.7mm |
| Aperture: | 80×100mm, 100×120mm, | Application: | Flood Control Retaining Wall, River Bank Vation, Slope Protection |
| Box Size: | 2m×1m×1m | Sample: | Available And Free |
| High Light: | sturdy gabion wall baskets,gabion wall baskets for slopes,2x1x1m gabion basket retaining wall |
||
Sturdy 2x1x1m Gabion Wall Baskets for Retaining Walls & Slopes
Gabion Baskets are constructed in various sizes and are commonly used for various applications including, but not limited to, retaining walls, steep slopes, rock fall areas to trap sediment, mechanically stabilized soil retaining structures, stream bank protection, slope paving, outfall structures, weirs, drop structures, etc.
The purpose of rock gabions is to prevent undercutting and/or scouring at the base of steep slopes. Vegetation may be incorporated into the gabion by placing cuttings between the gabion layers. The cuttings will take root in the gabions and the soil behind the structure. The vegetation provides additional stability once the root structure has developed.

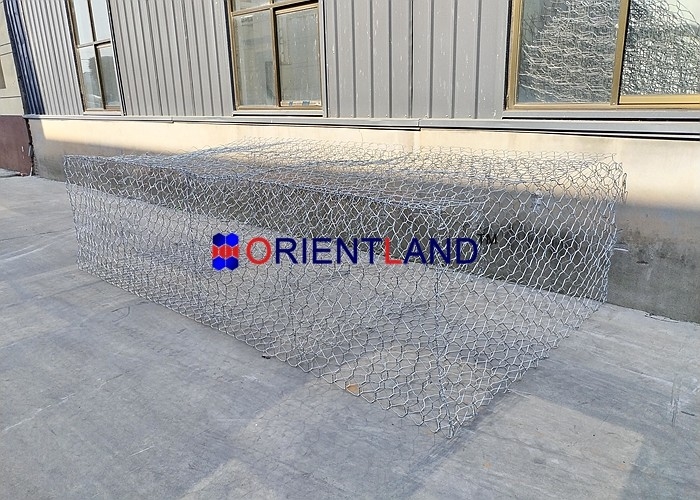

Gabion Cages are available in range of sizes in half metre steps with the 2x1x1m gabion cage being the most common size. Other common sizes are 1.5x1x1m, 1x1x1m, 2x1x0.5m, 1x1x1m etc. Larger sizes such as 3x1x1m and 4x1x1m are also available to special order. Smaller landscaping sizes such as 2×0.5×0.5m are also available. Sizes are always denoted in Length x Width x Height where the third dimension is always the vertical height.
Woven Mesh Gabions are also available as es. es are available 3x2m or 6x2m in plan and 0.17m, 0.23m 0.3m or 0.5m thick. es are typically used for erosion control and scour protection.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
Features of the Gabion:
The pliability and flexibility of the woven mesh makes it extremely flexible and tough and the ideal solution for civil engineering applications typically on poor or uneven ground, where some deformation of the basket is required or expected. The resulting wall also tends to look more natural, giving it a dry stone wall effect. As a result it particularly suits retaining wall applications for river training and coastal defence applications.
Woven Mesh Gabion retaining walls can be designed using the traditional gravity retaining wall concept, or alternatively, they can also be used as the facing element for reinforced earth retaining structures.
Applications of Gabion basket,
Gabion Box Packing:
