Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

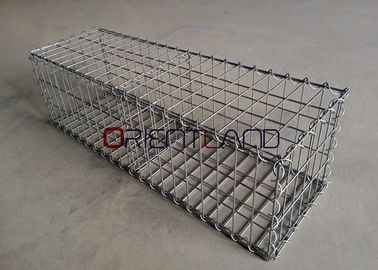

Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m

Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m
Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m

Large Image :  Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWGH001
Payment & Shipping Terms:
Minimum Order Quantity: 200units
Price: Negotiable
Packaging Details: Carton, Pallet
Delivery Time: 15-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4800units per month
Detailed Product Description
Type: Welded Mesh Material: Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire
Hole Shape: Square, Rectangular Wire Gauge: 4.0mm Or According To Specific Require
Application: Gabions, Fence, Retaining Wall, Shore Protection, Garden Aperture: 50×50mm, 75×75mm, 50×100mm
Gabion Box Size: 1m×0.3m×0.3m, 1m×0.3m×0.5m, 1m×0.3m×0.8m, 1m×0.3m×1m, 1.5m×0.3m×1m, 2m×0.3m×1m Packing: Carton, Iron Pallet, Wooden Pallet
Sample: Free
High Light:

landscaping gabion baskets

,

river control gabion basket

Hot dipped galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m




Product Description:

This durable, weather-resistant welded gabion basket made of hot dipped galvanised wire captivates with its filigree design as well as its wide range of applications. Filled with stones or similar materials and combined with other gabion baskets these wire constructs are ideal to be used as garden walls, noise barriers or for counteracting erosion as riverbank protection. These wire mesh cages can be further used as decorative garden elements, such as raised beds or seatings.



Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m 0



Specification of Welded Gabion Basket
Material  Mesh Wire dia. Helical Wire dia. Aperture Dimension

Hot dipped galvanized wire

Galfan wire

Black wire

4.0mm

5.0mm

3.0mm

4.0mm

5×5cm
5×10cm,
7.62×7.62cm,
10×10cm
1×0.3×0.3m,
1×0.3×0.5m,
1×0.3×0.8m,
1×0.3×1.0m
1.5×0.3×1.0m
2.0×0.3×1.0m
All the specification could be customized



Surface treatment of the Welded Gabion basket:

  • PVC powder paint after welded (color can be custmoized)
  • PVC powder coated after welded(color can be custmoized)
  • Hot dipped galvanized after welded



Aperture of the Welded Gabion

Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m 1

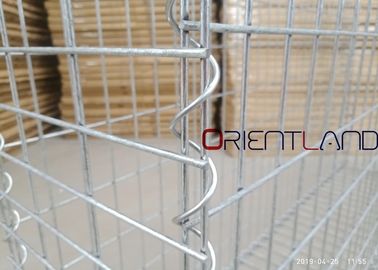

Helical Wire

Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m 2



Welded Gabion Installation Procedure



Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m 3

Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m 4

Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m 5

Normally each gabion basket include 6-7pcs welded panels(contains diaphragms), 12-16pcs helical binders wire and 2-4pcs corner stiffeners(can be replaced by bracing wire).


Features of Welded Gabions:

  • Easy for installation. No special technology needed.
  • Economic. Just fill the stone into the gabions and seal it.
  • Weather proof under natural destroy, corrosion resistant.
  • No collapse even under big scope of deforming.
  • Sludges in the stones is good for plant growing.
  • Mixed to form a integrity with the natural environment.
  • Less transport freight. It can be folded together for transport and further installation.



Welded Gabion Basket Application:

Hot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m 6

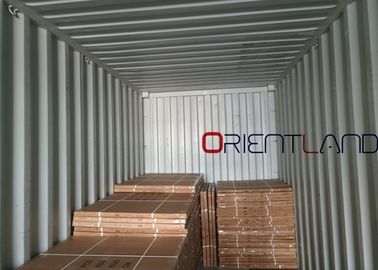

Packing and container loading:

  • Each unit put into a poly bag  then packed with corrugated cartonHot Dipped Galvanized Welded Gabion Baskets Aperture 5cm×10cm Size 1m×0.3m×0.3m 7
