Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO,SGS
Model Number: ORDB050
Payment & Shipping Terms:
Minimum Order Quantity: 50 Units
Packaging Details: Wooden Pallet, Iron Pallet
Delivery Time: 20-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000units per month
Detailed Product Description
Type: Defensive Barrier Material: Zinc-Aluminum Coatings Wire
Hole Shape: Square Wire Gauge: 5mm

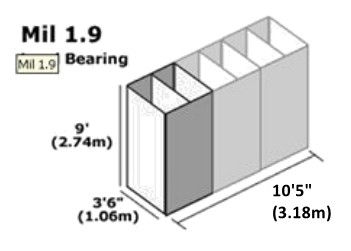

Aperture: 3"×3" Width: 1.06m
Height: 2.74m Helical Wire Dia.: 4mm
Geotextile Density: 300g/m2 Geotextile Color: White, Green, Brown, Black
Application: Military Defensive, Flood Control Retaining Wall Feature: Easily Assembled, Durable, Anti-corrosion
High Light:

Aluminum Coatings Expeditionary Barrier System

,

Expeditionary Barrier System MIL 1.9

,

Zinc Coatings Expeditionary Barrier System

Zinc-Aluminum Coatings Expeditionary Barrier Systems MIL 1.9


Products Description

Unlike common welded gabion, after set up in the field, Hesco barrier can be filled inside with soil, sand or gravel, to become a protection wall. This means raw material are very easy to get, especially suitable for the coastal area where is abundant in sand.

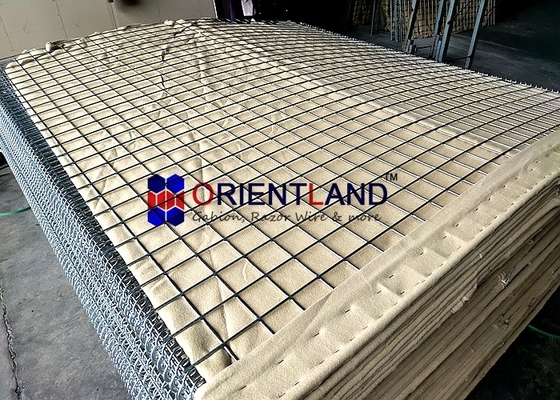

Expeditionary  Barriers is welded gabion modular container, assembled into various size by spiral wire, attached with geo textile material which thickness is 2mm, and weight is 200GSM-400GSM. It is also known as Military Bastions, mainly used for flood control and military fortification.



Specification:

Material: Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires.
Wire diameter: 4 mm or 5 mm.

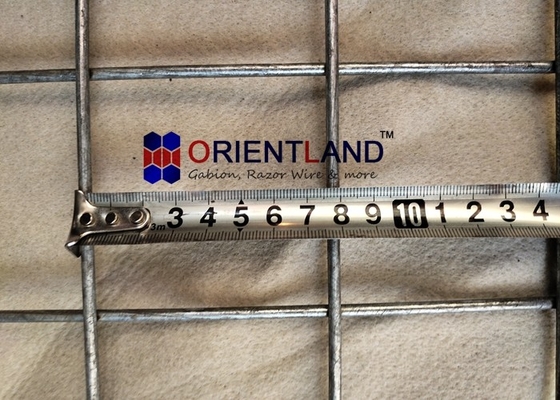

Mesh size: 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc
Geotextile: 320g, 400g heavy duty non-woven polypropylene
Geotextile color: White, beige, Military Green and other customized colors.

Zinc Aluminum Coatings Expeditionary Barrier System MIL 1.9 0





Zinc Aluminum Coatings Expeditionary Barrier System MIL 1.9 1

Zinc Aluminum Coatings Expeditionary Barrier System MIL 1.9 2

Zinc Aluminum Coatings Expeditionary Barrier System MIL 1.9 3

Zinc Aluminum Coatings Expeditionary Barrier System MIL 1.9 4

Product Features



  • All mil units are lined with a non-woven, uv-resistant geotextile with a five-year field life they can cope with harsh environments. each unit is available in beige (as default) or green standard colors.
  • The units are available in a range of heights and widths to provide protection against various threats including vehicles.
  • The geotextile-lined barriers are available in a re-usable format so you can quickly release the fill simply be removing the pin.
  • Units can be transported in containers or flat-bed vehicles for a quick clean up.

Zinc Aluminum Coatings Expeditionary Barrier System MIL 1.9 5

Zinc Aluminum Coatings Expeditionary Barrier System MIL 1.9 6

Zinc Aluminum Coatings Expeditionary Barrier System MIL 1.9 7
