Hesco Earth Filled Security 5mm Defensive Barrier

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

Hesco Earth Filled Security 5mm Defensive Barrier

Hesco Earth Filled Security 5mm Defensive Barrier
Hesco Earth Filled Security 5mm Defensive Barrier Hesco Earth Filled Security 5mm Defensive Barrier Hesco Earth Filled Security 5mm Defensive Barrier

Large Image :  Hesco Earth Filled Security 5mm Defensive Barrier

Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO,SGS
Model Number: ORDB006
Payment & Shipping Terms:
Minimum Order Quantity: 30 Units
Packaging Details: Wooden Pallet, Iron Pallet
Delivery Time: 20-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000units per month
Detailed Product Description
Type: Welded Mesh Hole Shape: Square
Wire Diameter: 3mm, 4mm,5mm Aperture: 3"×3", 2"× 2", 50x50mm, 75x75mm
Width: 0.61-2.13m Height: 0.61-2.21m
Helical Wire Dia.: 3mm, 4mm Material: Hot Dipped Galvanized Wire, Galfan Wire
Geotextile: 250g/m2, 300g/m2, 400g/m2 Geotextile Color: White, Green, Brown, Black
Feature: Easily Assembled, Durable, Anti-corrosion Usage: Protection, Flood Control Retaining Wall, Blast Wall, Decorative Stone, Military
High Light:

Hesco Defensive Barrier

,

5mm Defensive Barrier

,

50x50mm Defensive Barrier

Hesco Earth Filled Security Barriers Rapidly Deployable Wire Mesh Baskets


Products Description

Hesco earth-filled defensive barriers have been used worldwide to create perimeter protection barriers; construct temporary accommodation; mitigate VBIED’s and have now evolved to offer semi-permanent security fence solutions.


Since the First Gulf War the rapidly deployable wire mesh baskets have been deployed in arduous and remote locations creating simple perimeter walls to complex city-like fortification, defending personnel, equipment and critical assets of the US Army, UK MOD, USMC, USAF and NATO.



Hesco earth-filled defensive barriers have been used around the world to create barriers for perimeter protection, construct temporary accommodation, and provide high level security control.



Nowadays the terrorrist attackers, suicide bombers and insurgents engaged in a growing number, continue guerrilla warfare and use artillery, missile equipment, improvised explosive devices, therfore it became necessary to review the Force Protection and to developed new procedures, methods.



Specification:

Material: Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires.
Wire diameter: 4 mm or 5 mm.
Mesh size: 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc
Geotextile: 320g, 400g heavy duty non-woven polypropylene
Geotextile color: White, beige, Military Green and other customized colors.



Model Height (M) Width(M) Length(M) No. of cells
MIL 1 1.37 1.06 10 5+4=9cells
MIL 2 0.61 0.61 1.21 2cells
MIL 3 1.0 1.0 10 5+5=10cells
MIL 4 1.0 1.5 10 5+5=10cells
MIL 5 0.61 0.61 3.055 5cells
MIL 6 1.68 0.61 3.05 5cells
MIL 7 2.21 2.13 27.74 5+4+4=13cells
MIL 8 1.37 1.22 10 4+5=9cells
MIL 9 1.0 0.76 9.14 6+6=12cells
MIL 10 2.13 1.52 30.5 5+5+5+5=20cells
MIL1.9 2.74 1.06 3.3 6cells
EPW1 2.1 1.06 33M .......

Hesco Earth Filled Security 5mm Defensive Barrier 0

Hesco security barriers are engineered to provide a rapidly deployed high-level security fence for the protection of critical infrastructure and assets.

Combining the central concept of the Concertainer system, these fences are ground-mounted and proven to withstand vehicle borne attacks.

Each model is ground mounted, can be built on undulating or sloping ground and available in heights up to 5m (16in), creating a formidable barrier.

Hesco Earth Filled Security 5mm Defensive Barrier 1



Product Features

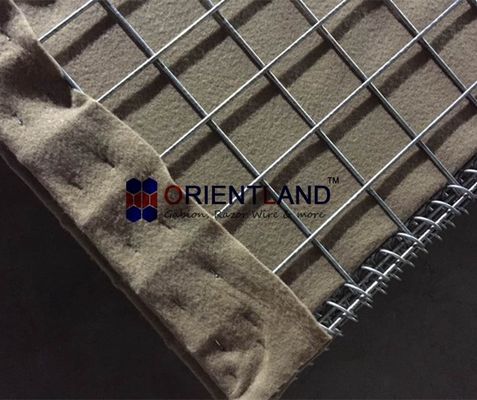

  • All mil units are lined with a non-woven, uv-resistant geotextile with a five-year field life they can cope with harsh environments. each unit is available in beige (as default) or green standard colors.
  • The units are available in a range of heights and widths to provide protection against various threats including vehicles.
  • The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
  • Units can be transported in containers or flat-bed vehicles for a quick clean up.

Hesco Earth Filled Security 5mm Defensive Barrier 2
