Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m

Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m
Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m
video play

Large Image :  Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: ORIENTLAND
Certification: ISO9001:2015
Model Number: ORWG2307141
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Material: PVC Coated Wire
Hole Shape: Hexagonal PVC Coated Colour: Dark Green, Grey, Gray
Core Wire Diameter: 2.7mm Wire Diameter After PVC Coated: 3.7mm
Aperture: 100×120mm Application: Flood Control Retaining Wall, River Bank Vation, Soil Conservation
Box Size: 2m×1m×1m, 1m×1m×1m Sample: Available And Free
Products Name: PVC-Coated 2.7mm 1mx1mx2m Gabion Wire
High Light:

hexagonal hole gabion wire baskets

,

gabion wire baskets 1mx1mx2m

,

2.7mm gabion baskets for retaining walls

PVC-Coated 2.7mm 1mx1mx2m Gabion Wire


Products Introduction:

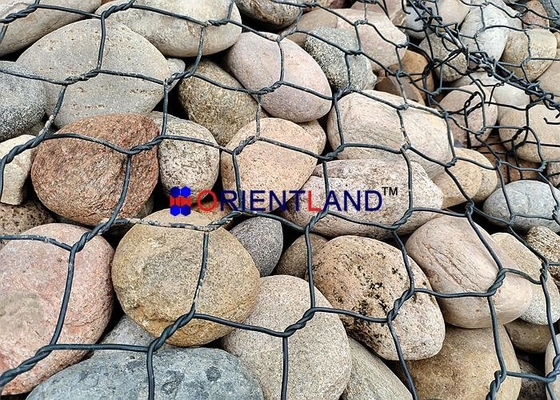

The PVC coated Gabion box or Matress normally in Dark Green color or Grey color. The core wire could be Zinc coated Wire, Heavy Zinc coated Wire, Galfan coating wire. Normally the coating is in 0.5mm thick.

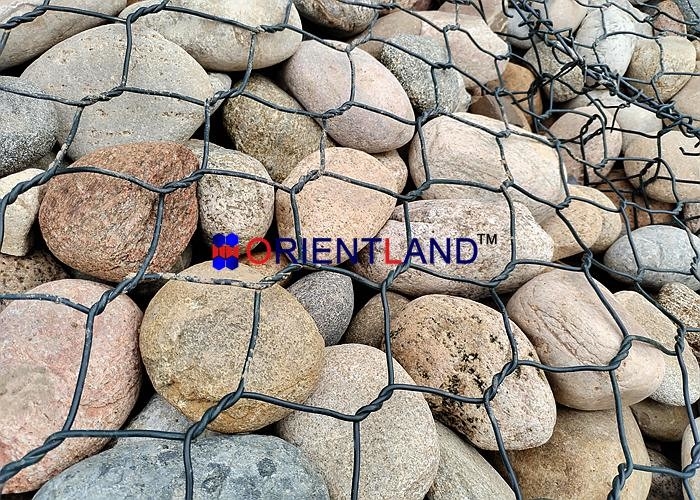

The woven mesh has a high tensile strength, as well as a high compressive strength when filled with suitable un-weathered rock.

Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 0
Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 1

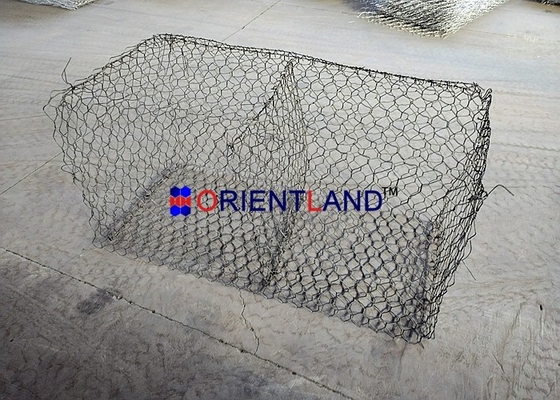

Gabion Box

Gabions are supplied in a wide range of sizes, commonly measured firstly in length x width x height of basket (all measurements in metres). Standard sized baskets are available and listed below, other sizes can sometimes be made available depending on the quantity required.
Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 2

Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 3

In order to strengthen the box, all the edge of the structure shall be selvedged with bigger diameter wire.
Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 4
Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275
Thickness after PVC coating 3.0 3.2 3.4 3.7 4.0 4.4 4.9


Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-4.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3


Matrress

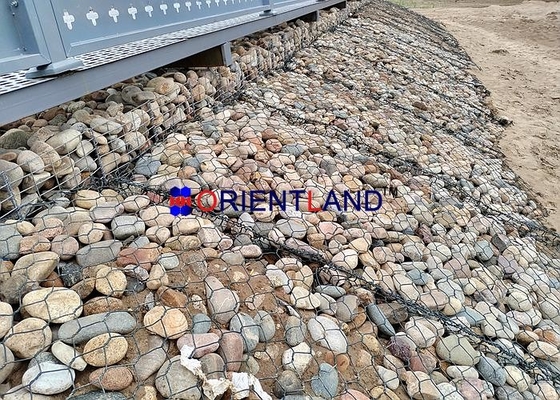

Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour.

Mesh Size Tolerance Wire Dia. Length  Width Height Diaphragms
60×80mm +16%/-4% 2.0-2.5mm 3-6m 1-3m 0.17-0.45m 2-5

 Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 5
Gabion advantage
1). Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3). This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.

Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 6

Gabion Woven Mesh baskest application:

  • Control and guide of water or flood
  • Preventing of rock breaking
  • Rock fall protection
  • Water and soil protection
  • Bridge protection
  • Strengthening structure of soil
  • Protection engineering of seaside area.
  • Port project
  • Keep off dust wall
  • Roadway protection.

Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 7
Gabion Box Workshop:
Hexagonal Hole Pvc Coated 2.7mm Gabion Wire Baskets 1mx1mx2m 8

FAQ:

1.How to make a inquiry of your Gabion?
You need to provide your prefored Material, Aperture size, Wire Diameter, Dimension and the Quantity, you can also indicate if you have any special requirement. We'll provide formal quotation list once received your inquiry.
2.Could you provide free sample?
Yes,we can provide free sample.
3.How is your payment term?
Generally,our payment term is 30%T/T in advance and the balance against the copy of B/L. LC also could be acceptable. Other payment term could be negotiated.
4.How is your delivery time?
We always prepare enough stock material for your urgent order. Normally 1000pcs 2×1×1m gabion baskets only need 3 days to producr. For you specific order, we'll make the best solution.
