Product Details:
Payment & Shipping Terms:
|
| Type: | Woven Gabion | Material: | PVC Coated Wire |
|---|---|---|---|
| Hole Shape: | Hexagonal | PVC Coated Colour: | Dark Green, Grey, Gray |
| Core Wire Diameter: | 2.5mm | Wire Diameter After PVC Coated: | 3.5mm |
| Aperture: | 80×100mm | Application: | Flood Control Retaining Wall, River Bank Vation, Soil Conservation |
| Box Size: | 2m×1m×1m, 1m×1m×1m | Sample: | Available And Free |
| High Light: | soil water conservation woven gabion baskets,pvc coated woven gabion baskets,pvc coated mesh gabion baskets |
||

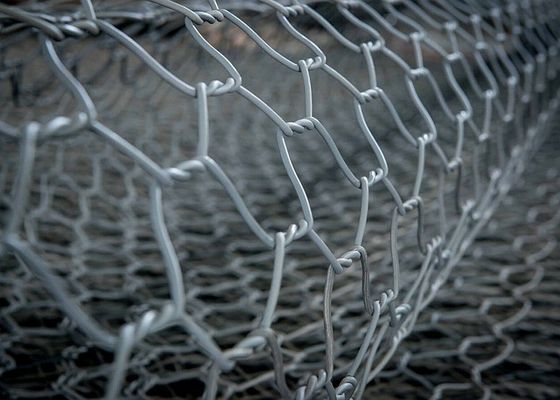

Grey Colour PVC Coated Woven Mesh Gabion Baskets Soil And Water Conservation
Products Introduction:
We manufacture Gabions using a Class A Galvanising – or together with an additional 0.5mm thickness PVC coating – for hexagonal type woven wire mesh gabion materials.
The woven mesh has a high tensile strength, as well as a high compressive strength when filled with suitable un-weathered rock.
The PVC coated Gabion box or Matress normally in Dark Green color or Grey color. The core wire could be Zinc coated Wire, Heavy Zinc coated Wire, Galfan coating wire. Normally the coating is in 0.5mm thick.
Gabion Box
Gabions are supplied in a wide range of sizes, commonly measured firstly in length x width x height of basket (all measurements in metres). Standard sized baskets are available and listed below, other sizes can sometimes be made available depending on the quantity required.
In order to strengthen the box, all the edge of the structure shall be selvedged with bigger diameter wire.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
| Thickness after PVC coating | 3.0 | 3.2 | 3.4 | 3.7 | 4.0 | 4.4 | 4.9 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-4.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
Matrress
Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour.
| Mesh Size | Tolerance | Wire Dia. | Length | Width | Height | Diaphragms |
| 60×80mm | +16%/-4% | 2.0-2.5mm | 3-6m | 1-3m | 0.17-0.45m | 2-5 |
Gabion advantage
1). Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3). This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.
Gabion Woven Mesh baskest application:
Gabion Box Workshop:
FAQ:
1.How to make a inquiry of your Gabion?
You need to provide your prefored Material, Aperture size, Wire Diameter, Dimension and the Quantity, you can also indicate if you have any special requirement. We'll provide formal quotation list once received your inquiry.
2.Could you provide free sample?
Yes,we can provide free sample.
3.How is your payment term?
Generally,our payment term is 30%T/T in advance and the balance against the copy of B/L. LC also could be acceptable. Other payment term could be negotiated.
4.How is your delivery time?
We always prepare enough stock material for your urgent order. Normally 1000pcs 2×1×1m gabion baskets only need 3 days to producr. For you specific order, we'll make the best solution.
