Orientland Wire Mesh Products Co., Ltd
Home ProductsRazor Barbed Wire

Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty

Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty
Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty

Large Image :  Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORBTO22110202
Payment & Shipping Terms:
Minimum Order Quantity: 1 tons
Price: USD800-1200 per ton
Packaging Details: Plastic woven bag, pallet or nude packing
Delivery Time: 7-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 tons per day
Detailed Product Description
Core Wire: Hot Dipped Galvanized Steel Wire Blade: Hot Dipped Rolled Plate
Barbed Type: BTO-11, BTO-22 Coil Diameter: 960mm
Length: 14-16m Number Of Loops: 54-56
Application: Militaty Use, Airport, Court, Garden Protection Sample: Free
High Light:

bto-11 galvanized razor barbed wire

,

militaty galvanized razor barbed wire

,

bto-22 galvanized razor wire

BTO-22 960mm diameter galvanized military concertina razor barbed wire


Razor Barbed Wire

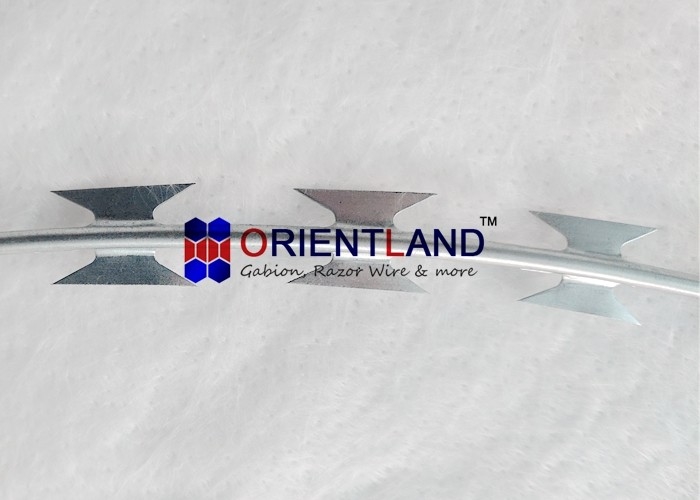

Razor barbed Wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty 0



Currently, barbed tape has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.



Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty 1



Specification of Concertina Razor Wire

Coil Diameter No. of Loops Standard Length No. of Clips Barbed Type Notes
450mm 56 8-9m 3 BTO-10, 22,30 Concertina Type
500mm 56 9-10m 3 BTO-10, 22,30 Concertina Type
600mm 56 10-11m 3 BTO-10, 22,30 Concertina Type
600mm 56 8-10m 5 BTO-10, 22,30 Concertina Type
700mm 56 10-12m 5 BTO-10, 22,30 Concertina Type
800mm 56 11-13m 5 BTO-10, 22,30 Concertina Type
900mm 56 12-14m 5 BTO-10, 22,30 Concertina Type
960mm 56 13-15m 5 BTO-10, 22,30 Concertina Type
980mm 56 14-16m 5 BTO-10, 22,30 Concertina Type



Points to note when selecting Razor Wire

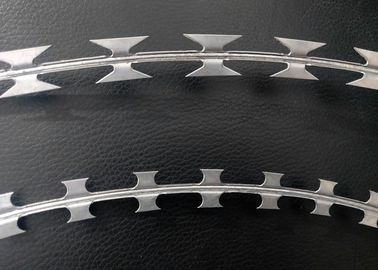

  • Blade thickness

0.5mm is the industry standard, anything less is likely to bend easily.

  • The core wire diameter:

2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.

Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty 2

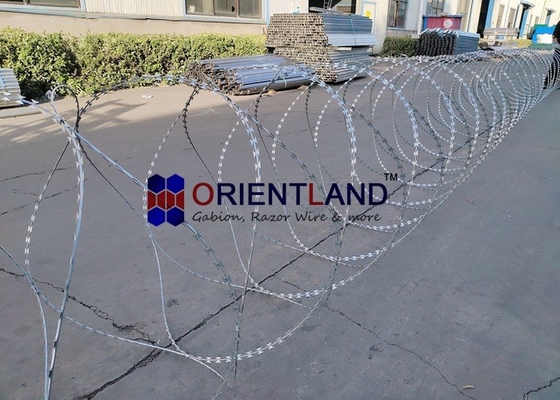

  • Coil diameter of the Razor Wire.

Normally we have 300mm, 450mm, 500mm, 600mm, 650mm, 730mm, 950mm, 1000mm as usual.

Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty 3



  • The number of loops per coil

This determines the amount of Razor wire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razor wire.

Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty 4



Packing of the Concertina Raozr Wire

  • Waterproof paper inside, outside wrapped with plastic woven bag
  • Wooden Pallet
  • Nude packing

Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty 5



Bto-11 Bto-22 Galvanized Razor Barbed Wire 960mm Diameter Militaty 6
