Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORRW221130
Payment & Shipping Terms:
Minimum Order Quantity: 2 tons
Price: Negotiable

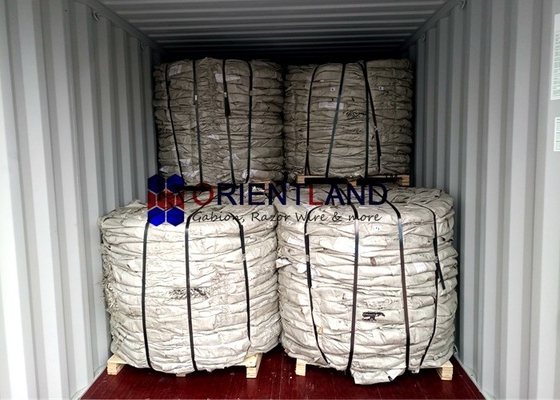

Packaging Details: Plastic woven bag, pallet or nude packing
Delivery Time: 7-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 tons per day
Detailed Product Description
Core Wire: Hot Dipped Galvanized Steel Wire Blade: Hot Dipped Rolled Plate
Barbed Type: BTO-22 Coil Diameter: 450mm
Length: 8m Number Of Loops: 54loops
Application: Militaty Use, Airport, Court, Garden Protection, Fence Sample: Free
High Light:

Concertina Razor Fencing Wire

,

Razor Fencing Wire Cross Type

,

BTO-22 Concertina Barbed Wire

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers


Razor wire, always referred to as barbed tape, is a modern version and great alternative to traditional barbed wire, which is designed to prevent unauthorized intrusion along perimeter barriers. It is fabricated from high tensile wire onto which a multitude of razor-sharp barbs are formed at close and uniform intervals. It's sharp barbs act as both visual and psychological deterrent, making it ideal for industries such as commercial, industrial, residential and governmental areas.



BTO 22 / Concertina 22

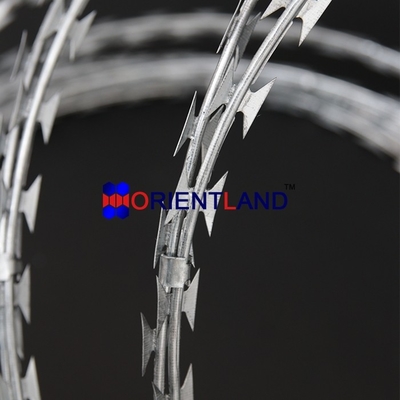

Concertina 22 is defined by blades 22 mm wide, it belonging to the group of more standard models concertinas, with a space between blades of 34 mm. Concertina 22 contains no extra reinforcement wire but being a bit larger than other types of concertina less extent, contains a higher level of persuasion.

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers 0

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers 1

Thickness Wire Long Blade Blade Width Blade Spacing
0.5mm 2.5mm 22mm 15mm 34mm



The coil diameter of this type of concertina is 450 mm – 1500 mm, but have different action on other models of concertinas, special measures such as 600, 750, 850 or 980 mm.

Coil Diameter(mm) No. Clips Linear Meters
450 3 8-11
500 3 9-12
600 3 9-12
700 3-5 9-12/13-16
730 3-5 9-12/13-16
800 3-5 9-12/13-16
950 5 11-14
1000 5 11-14
1250 7 12-15
1500 9 12-15

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers 2

The concertina 22 made ​​of stainless steel or galvanized wire high strength 1400-1600 MPa.

  • Stainless Steel EN 1.4016 - AISI 430
  • Stainless Steel EN 1.4301 - AISI 304
  • Stainless Steel EN 1.4401 - AISI 316
  • Galvanized Steel Z40 - Z275
  • Wire Strength: 1400 - 1600 MPa
  • No. loops: 55 ± 1

The sectors requiring this type of concertinas are places with medium-high levels of security, such as borders, power plants or refineries and many others.

  • Lugares con requerimiento de media-alta seguridad:
  • Fronteras
  • Refinerías
  • Aeropuertos
  • Centrales eléctricas
  • Embalses
  • Minas

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers 3

Choosing your Razor wire



Typically, the bigger the diameter the more of an obstacle/deterrent the Razor wire is. 300mm and 450mm diameter is the smaller size we recommend for domestic installations. This size is an adequate deterrent and also the easiest to fit, as standard support brackets will be suitable for this diameter and weight of the razor wire. 730mm & 900mm diameter will require specially made brackets for an installation.

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers 4

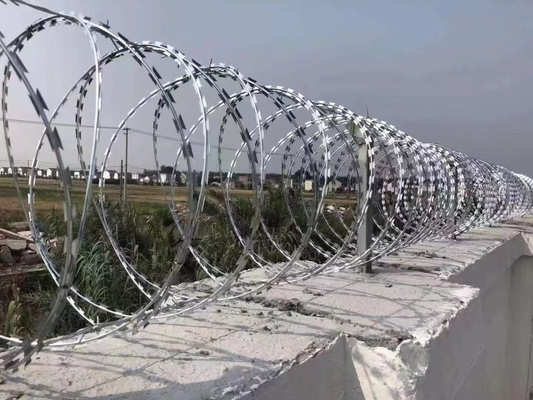

If fitting to the ground then we recommend a size that can’t be vaulted over, then the suggested options would be to install a single run of 900mm diameter Razor wire or alternatively, stack smaller diameter Razor wire on top of each other either vertically or in a pyramid fashion.



Points to note when selecting Razor Wire

  • Blade thickness

0.5mm is the industry standard, anything less is likely to bend easily.

  • The core wire diameter:

2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers 5



  • The number of loops per coil

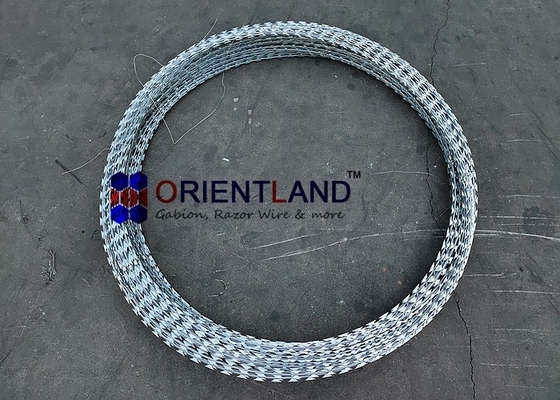

This determines the amount of Razor wire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razor wire.

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers 6

  • Stainless Steel or Galvanized?

The environment the product is being deployed in may determine whether Stainless Steel or Galvanised is the best option. Stainless Steel is more expensive, but offers greater durability especially in salt air environments. Over time Stainless Steel will outlast Galvanised, therefore making it the best long term option. However, Galvanised is more than adequate for most regions and applications. We would always suggest you check the level of zinc coating when selecting Razorwire, all our Galvanised products are 200g/m2, if the supplier cant provide the information, you may only be getting a product with 60g/m2 which will deteriorate and rust much more quickly.



  • Blade type

Smaller blades such as BTO10 (10mm) are quite small and therefore less of a deterrent. Larger blade profiles such as CBT65 (65mm) are much more effective & therefore reflected in the price.

Concertina Razor Fencing Wire Cross Type Barbed Tape Perimeter Barriers 7
