Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

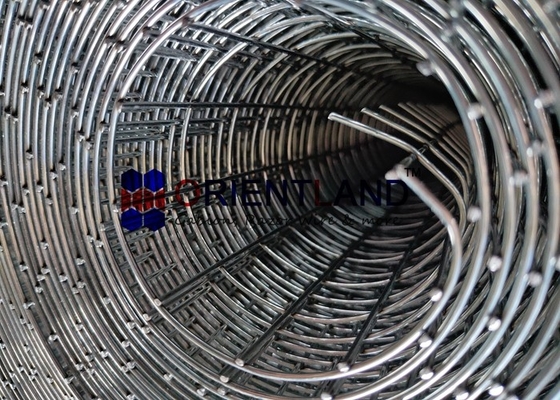

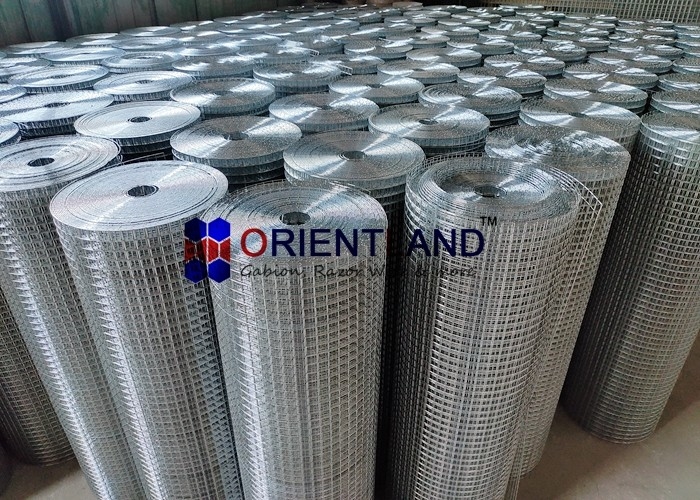

Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening

Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening
Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening

Large Image :  Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening

Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO, SGS
Model Number: ORWD022
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: waterproof paper, plastic film, carton
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 pcs per month
Detailed Product Description
Type: Welded Wire Mesh Hole Shape: Square
Wire Gauge: 18 Application: Construction Wire Mesh, Fence Mesh, Building Wire Mesh Panels
Material: GI Wire Aperture: 1/2inch
Width: 36inch Length: 100'
Sample: Free Product Name: Heavy Duty Galvanized Hardware Cloth 36inch X100ft, 1/2 Inch Opening, Wire Mesh
High Light:

36inch x100ft galvanized welded wire mesh

,

1/2inch opening galvanized welded wire mesh

,

heavy hot dipped galvanized wire mesh

Heavy Duty Galvanized Hardware Cloth 36inch x100ft, 1/2 inch Opening, Wire Mesh


The hardware cloth is not only a roll of wire mesh, but also can make our life more convenient, simple and comfortable.



Products description:

The hardware cloth also called electrical galvanized welded mesh, it has 15g/m2 zinc coating in common. It was used in breeding industry, building, mine etc.

Welded wire mesh - electric galvanized
This type of welded wire mesh is designed for building fencing and in other infrastructural purposes. It is a corrosion resistant wire mesh that is largely used in structural building. It is also available in different forms like rolls and panels for industrial uses.

Welded wire mesh - hot dipped galvanized
This type of mesh wire is generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.

Welded wire mesh - PVC coated
PVC coated welded wire mesh with plastic covering is constructed with galvanized iron wire of high quality. It has PVC powder covering that is processed by an automatic machine. The smooth plastic coating on this corrosion protective wire is attached with a strong adhesive which make increases durability of the wire. It is used in fencing residential and official properties like gardens, parks, building etc. The PVC coated welded mesh which is available as both rolls and panels, is also available in different colors like white, black, green etc.

Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening 0

Specifications:

Wire Diameter (BWG) Mesh Opening Width
inch mm
0.5m-2.0m
22, 23, 24 1/4"×1/4'' 6.4×6.4mm
19, 20, 21, 22 3/8"×3/8'' 10.6×10.6mm
16, 17, 18, 19, 20, 21, 22, 23 1/2"×1/2'' 12.7×12.7mm
18, 19, 20, 21 5/8"×5/8'' 16×16mm
16, 17, 18, 19, 20, 21 3/4"×3/4'' 19×19mm
16, 17, 18, 19, 20, 21 1"×1/2'' 25.4×12.7mm
14, 15,16, 17, 18, 19 1-1/2"×1-1/2'' 38×38mm
14, 15,16 1"×2'' 25.4×50.8mm
12, 1314, 15,16 2"×2'' 50.8×50.8mm

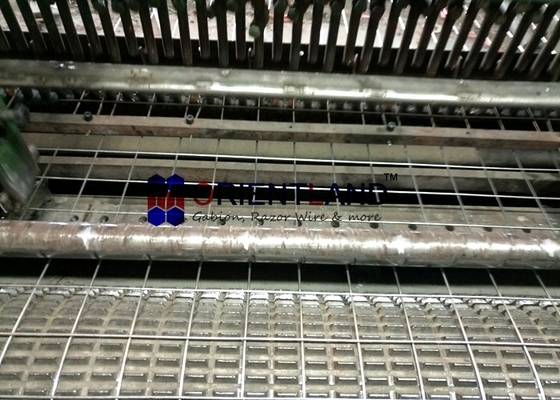

Processing of Welded Wire Mesh

  • Welding with iron wire (without surface treatment)
  • Hot dipped galvanizing before welding
  • Hot dipped galvanizing after welding
  • Electric galvanizing before welding
  • Electric galvanizing after welding
  • PVC powder coating after welding

Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening 1

Applications

  • Construction applications
  • Garden fencings
  • Security cages and securing areas
  • Machinery protection areas and factory "safe zones"
  • Bird cages / Pet enclosures / Dog proof fencing
  • Protecting ponds from falling tree leaves

Heavy Duty 36inch X100ft Galvanized Welded Wire Mesh 1/2 Inch Opening 2
