Product Details:
Payment & Shipping Terms:
|
Type: | Welded Wire Mesh | Material: | Stainless Steel Wire |
---|---|---|---|
Hole Shape: | Square | Wire Diameter: | 0.8mm |
Wire Gauge: | 21 | Aperture: | 3/4" |
Width: | 4ft | Length: | 100ft |
Application: | Construction Wire Mesh, Fence Mesh | Sample: | Free |
High Light: | 21 gauge electro welded wire mesh,4ft electro welded wire mesh,ss 21 gauge welded wire mesh |

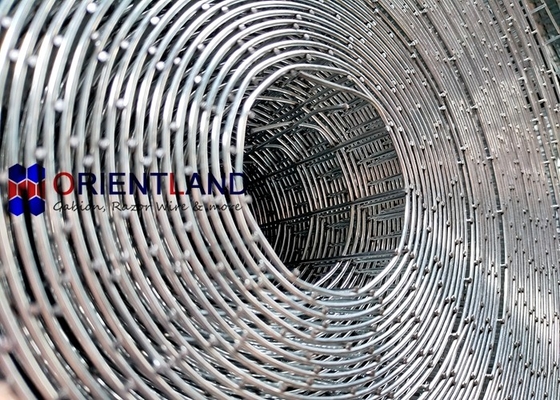

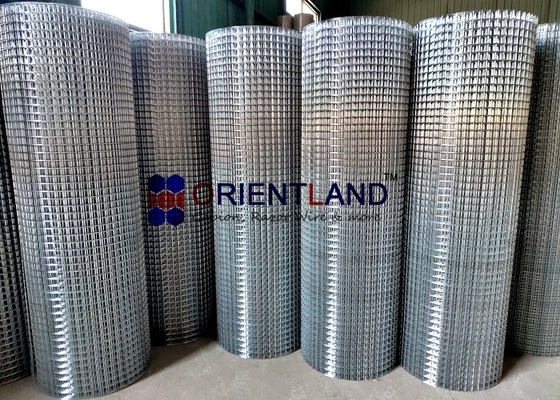

21Gauge 3/4" Mesh Size Stainless Steel Welded Wire Mesh Screen 4ft
Material: Stainless steel 304 wire, stainless steel 201 wire
Products description:
Welded Wire Mesh roll is made of superior quality iron wire, electric galvanzied wire, hot dipped galvanized wire, stainless steel wire with flat surface, firm structure. After PVC powder coating or galvanization, the welded wire mesh can resist the corrosive. It's used extensively in building, agriculture, breeding industry and so on.
Specifications:
Wire Diameter (BWG) | Mesh Opening | Width | |
inch | mm | 0.5m-2.0m | |
22, 23, 24 | 1/4"×1/4" | 6.4×6.4mm | |
19, 20, 21, 22 | 3/8"×3/8" | 10.6×10.6mm | |
16, 17, 18, 19, 20, 21, 22, 23 | 1/2"×1/2" | 12.7×12.7mm | |
18, 19, 20, 21 | 5/8"×5/8" | 16×16mm | |
16, 17, 18, 19, 20, 21 | 3/4"×3/4" | 19×19mm | |
16, 17, 18, 19, 20, 21 | 1"×1/2" | 25.4×12.7mm | |
14, 15, 16, 17, 18, 19 | 1-1/2"×1-1/2" | 38×38mm | |
14, 15, 16 | 1"×2" | 25.4×50.8mm | |
12, 13, 14, 15, 16 | 2"×2" | 50.8×50.8mm |
Processing of Welded Wire Mesh Roll
Applications
