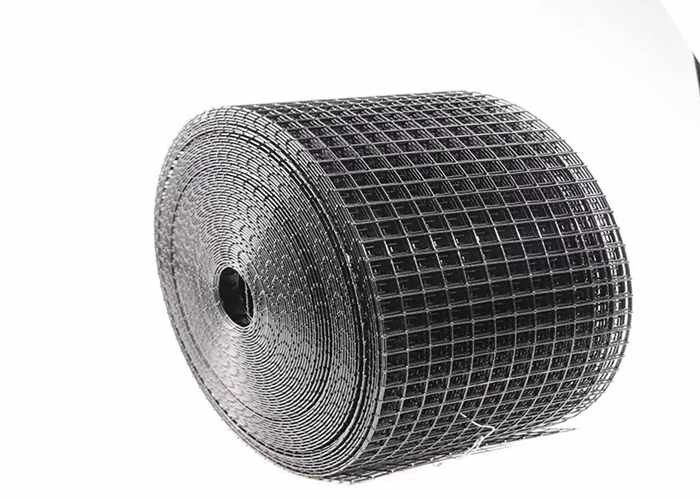

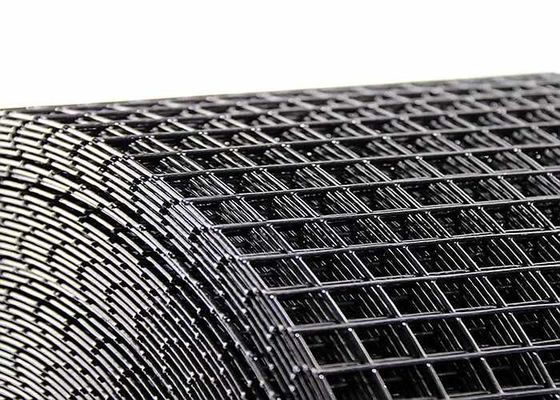

8x50 25ft Black Pvc Coated Welded Wire Mesh

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

8x50 25ft Black Pvc Coated Welded Wire Mesh

8x50 25ft Black Pvc Coated Welded Wire Mesh
8x50 25ft Black Pvc Coated Welded Wire Mesh 8x50 25ft Black Pvc Coated Welded Wire Mesh

Large Image :  8x50 25ft Black Pvc Coated Welded Wire Mesh

Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO, SGS
Model Number: ORWD010
Payment & Shipping Terms:
Minimum Order Quantity: 200 rolls
Price: Negotiable
Packaging Details: Waterproof paper, Plastic film
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 rolls per month
Detailed Product Description
Type: Welded Wire Mesh Material: Black Iron Wire, Electric Galvanized Wire, Hot Dipped Galvanized Wire
Hole Shape: Square, Rectangle Wire Diameter: 0.5mm, 0.7mm, 1.0mm, 1.2mm
Application: Bird Exclusion, Anti Bird Aperture: 1/2inch, 3/4inch, 1 Inch
Width: 10cm, 15cm, 20cm, 30cm Length: 25ft, 50ft, 100ft
Surface Treatment: PVC Powder Coated Packing: Waterproof Paper, Plastic Film
High Light:

8x50 black pvc coated welded wire mesh

,

25ft black pvc coated welded wire mesh

,

8x50 black pvc wire mesh

8"x50' Solar Panel Exclusion Wire Mesh Black PVC Coated Wire Cloth


Solar panels are being installed on commercial and residential roofs across America at an ever increasing rate. This innovative system is designed specifically to keep all birds from getting under solar arrays, protecting the roof and equipment from damage. These arrays provide perfect harborage for birds, and homeowners are desperate for a solution. This non-penetrating system is fast and easy to install, and can be removed for service.



The wire mesh is supplied in rolls. The preferred technique is to cut it into six-foot lengths and straighten, before getting onto the roof. Then, using a 2x4, bend up the bottom one-inch to about 30 degrees. This kick-out helps to lock the mesh firmly in place.



Features:
Patent-pending plastic clips are UV-stable, won't scratch panels.
Clips recommended every 18 inches.
Patent-pending clips bind the mesh to the panels without drilling holes or damaging the system.
Nearly invisible from the ground.
Tin snips and other basic tools required for installation.

8x50 25ft Black Pvc Coated Welded Wire Mesh 0







Specifications of Solar Panel Exclusion Wire Mesh
Wire Diameter/After PVC Coated Diameter 0.7/1.0mm, 1.0/1.5mm, 1.0/1.6mm
Mesh Opening 1/2"X1/2"
Width 4inch, 6inch, 8inch, 10inch
Length 25ft, 50ft, 100ft
Material Hot dipped galvanized wire, Electric galvanized wire
All the size can be customized.



Advantages of Product:
1:Fast and easy to install, no gluing or drilling necessary.
2:It does not void warranties and can be removed for servicing.
3:Non-invasive installation method that neither pierces the
solar panel nor the roof covering
4:It is better than using spikes or repellent gels,100% effective when properly installed
5: long-lasting, durable, non-corrosive
6:Reduce the cleaning and maintenance requirements for solar panels
7:It is specifically designed and intended for use in excluding all species of birds from roosting
and nesting solar panel arrays

8x50 25ft Black Pvc Coated Welded Wire Mesh 1
