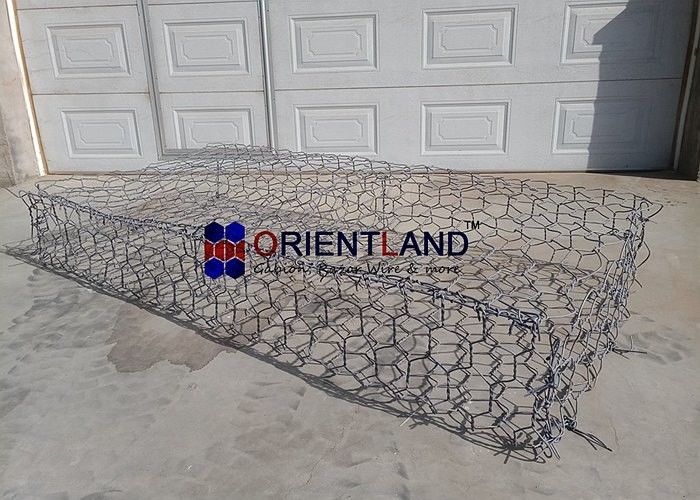

Erosion Control 100×120mm Gabion Basket Retaining Wall

Erosion Control 100×120mm Gabion Basket Retaining Wall
Erosion Control 100×120mm Gabion Basket Retaining Wall Erosion Control 100×120mm Gabion Basket Retaining Wall Erosion Control 100×120mm Gabion Basket Retaining Wall Erosion Control 100×120mm Gabion Basket Retaining Wall

Large Image :  Erosion Control 100×120mm Gabion Basket Retaining Wall

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG034
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Wire Mesh Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 60×80mm, 80×100mm, 100×120mm, 120×140mm Application: Flood Control Retaining Wall, River Bank Renovation, Slope Protection
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Sample: Available And Free
Surface Treatment: Hot Dipped Galvanized, Galvanized, PVC Coated, Galfan, Hot-dipped Packing: Pallet, Waterproof Paper, Bundle, Bulk, As Your Requirment
High Light:

erosion control gabion retaining wall

,

100×120mm gabion basket retaining wall

,

Hexagonal gabion basket retaining wall

Slope Stability And Protection Gabion Retaining Wall Erosion Control Gabion Wire Mesh


Products Description:
Gabion retaining walls are wire structures similar in fashion to large baskets. These wire meshes are filled with rock and masonry to form large blocks. These make ideal retaining walls or linings for channels. They also have the advantage of being highly rugged and cheap to design and build. They are ideal in large areas that need buttressing. Gabion walls can be any size but they are particularly useful for homeowners to help prevent the erosion of slopes and lining culverts. Though installing gabion retaining walls is time-consuming and labor-intensive, there is nothing particularly complicated about it.

  • Gabion Boxes:

These are blocks made of gabion mesh, which can be filled on the site with rocks, stones, debris and crushed concrete.
(Note: similar boxes can also be made out of welded wire mesh)

  • Gabion Mattresses:

Mattresses out of gabions are used to provide protection on water courses.

  • Gabion Rock fall netting:

As the name suggests, this kind of netting made out of gabion mesh finds application in preventing rocks and debris from spilling.

  • Gabion Sack:

Used in controlling water flow.
Erosion Control 100×120mm Gabion Basket Retaining Wall 0
Gabion Technical Parameter:

Wire dia.(mm)2.02.22.42.73.03.43.9
Tolerance(mm)0.050.060.060.060.070.070.07
Min. Zinc coating(g/m2)215230230245255265275


Gabion specifications:

Mesh SizeToleranceDiameterLengthWidthHeightDiaphragms

80×100mm

100×120mm

+16%/-4%2.0-3.0mm1.510.50
1.5110
210.50/1
2110/1
310.50/2
3110/2
4110/3



Erosion Control 100×120mm Gabion Basket Retaining Wall 1
Applications / Uses of Gabions :
Gabions have been around for over a hundred years and have a wide range of applications and new ones are continually being found. We have listed below the most common applications to date, manufactured using either woven double twisted or welded square mesh.


APPLICATIONS
  • Control or guide river or flood.
  • Retain structure.
  • Protect roadway or bridge.
  • Protect river bank or dam.
  • Pave channel in the river.
  • Be as gravity retaining wall.
  • Be as highway embankments.
  • Prevent rock breaking.
  • Protect water and soil.
  • Building construction.
  • Steep hill stability.
  • Building stability.
  • Bridge protection.
  • Erosion control.Drainage.

Erosion Control 100×120mm Gabion Basket Retaining Wall 2
Advantages of Gabions

  • Exemplary modularity and ability to stack in various sizes and shapes,
  • Gabion structures are capable of resisting any types of stresses, bending, tensile and shear.
  • Gabion structures can accommodate differential settlements without disturbing the structural integrity.
  • The permeability characteristics of Gabion structures eliminate the problems caused in RCC structures, such as soil instability, water logged backfills/foundation etc.
  • Gabion and gabion mattresses are backed with well documented research and certifications concerning durability of the structure
