|Core Wire:||Hot Dipped Galvanized Steel Wire, Electric Galvanized Iron Wire||Blade:||Hot Dipped Rolled Plate, Stainless Steel Blade|
|Barbed Type:||BTO-10||Coil Diameter:||450mm, 600mm, 900mm|
|Length:||14-16m||Number Of Loops:||54-56loops|
|Application:||Militaty Use, Airport, Court, Garden Protection, Fence||Sample:||Free|
BTO 10 Razor Barbed Wire,
Hot dipped galvanized Razor Wire,
900mm Razor Barbed Wire

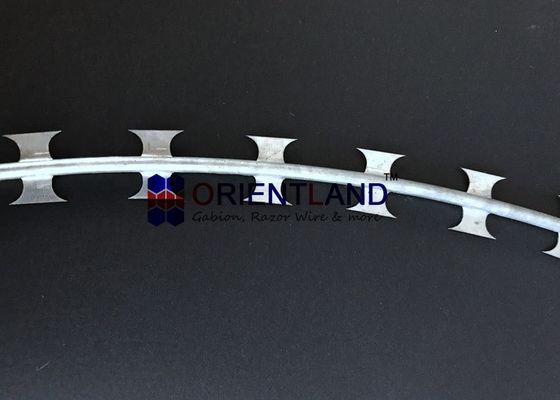

BTO 10 Barbed Razor Wire Concertina 10 Razor Blade Fencing Wire High Resistance Wire
BTO 10 / Concertina 10
Concertina 10 is defined by blades 10 mm wide, it is the smallest and least aggressive of all models, with a space between blades of 26 mm without extra reinforcement wire but still with great power detention.
|Thickness||Wire||Long Blade||Blade Width||Blade Spacing|
The diameter of this razor wire is 450 mm – 1500 mm, but we have different action on other models of concertinas.
|Coil Diameter(mm)||No. Clips||Linear Meters|
The razor wire concertina 10 is made of stainless steel or galvanized wire high strength 1400-1600 MPa.
The sectors requiring this razor wire type are places with low levels of security, such as farms or tank vehicles and many others.
Choosing your Razor wire
Typically, the bigger the diameter the more of an obstacle/deterrent the Razor wire is. 300mm and 450mm diameter is the smaller size we recommend for domestic installations. This size is an adequate deterrent and also the easiest to fit, as standard support brackets will be suitable for this diameter and weight of the razor wire. 730mm & 900mm diameter will require specially made brackets for an installation.
If fitting to the ground then we recommend a size that can’t be vaulted over, then the suggested options would be to install a single run of 900mm diameter Razor wire or alternatively, stack smaller diameter Razor wire on top of each other either vertically or in a pyramid fashion.
Points to note when selecting Razor Wire
0.5mm is the industry standard, anything less is likely to bend easily.
2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.
This determines the amount of Razor wire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razor wire.
The environment the product is being deployed in may determine whether Stainless Steel or Galvanised is the best option. Stainless Steel is more expensive, but offers greater durability especially in salt air environments. Over time Stainless Steel will outlast Galvanised, therefore making it the best long term option. However, Galvanised is more than adequate for most regions and applications. We would always suggest you check the level of zinc coating when selecting Razorwire, all our Galvanised products are 200g/m2, if the supplier cant provide the information, you may only be getting a product with 60g/m2 which will deteriorate and rust much more quickly.
Smaller blades such as BTO10 (10mm) are quite small and therefore less of a deterrent. Larger blade profiles such as CBT65 (65mm) are much more effective & therefore reflected in the price.
