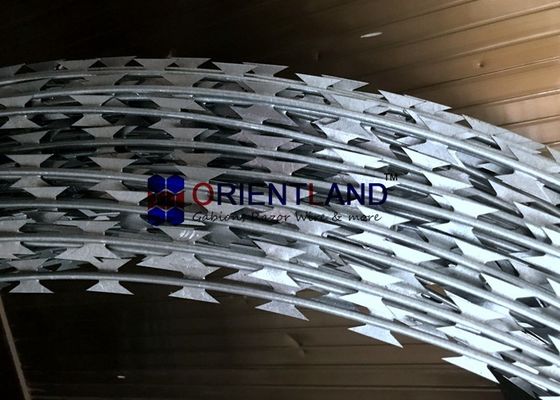

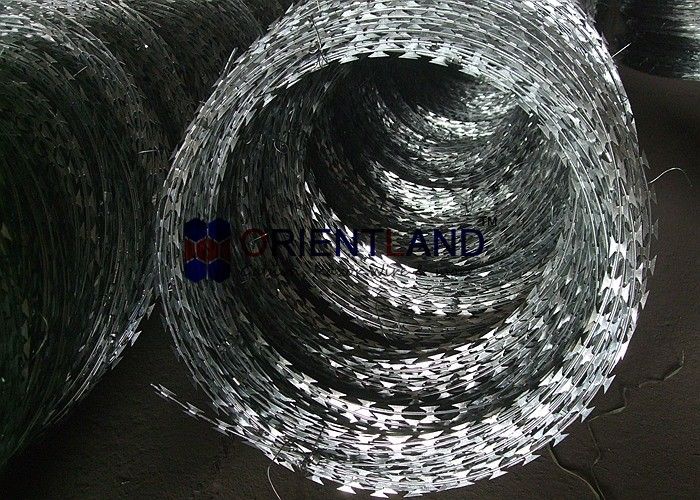

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire
450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire

Large Image :  450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORRW024
Payment & Shipping Terms:
Minimum Order Quantity: 2 tons
Price: Negotiable
Packaging Details: Plastic woven bag, pallet or nude packing
Delivery Time: 7-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 tons per day
Detailed Product Description
Core Wire: Hot Dipped Galvanized Steel Wire, Electric Galvanized Iron Wire Blade: Hot Dipped Rolled Plate, Stainless Steel Blade
Barbed Type: BTO-11, BTO-22. BTO-30, CBT-60, CBT-65 Coil Diameter: 450mm, 600mm, 900mm
Length: 14-16m Number Of Loops: 54-56loops
Application: Militaty Use, Airport, Court, Garden Protection, Fence Sample: Free
High Light:

BTO-11 stainless steel razor wire

,

hdg stainless steel razor wire

,

450mm stainless steel razor wire

NATO Razor Wire Coiled Razor Wire High Tensile Razor Concertina Wire


This NATO razor wire, suitable for all types of outdoor use, will be a perfect choice for protecting your fields and property. It could even be used to secure military sites, prisons and government agencies.
The sturdy barbed wire is already coiled and has 3 clips on each loop, which results in a tubular shape with gaps that are too small for a person to climb through. This will keep unwanted guests out of your property. The razor wire can be wound around the top of your property fence for added security.
Made of high-quality galvanised steel, our razor wire is weather- and water-resistant, and highly durable.
Please check your local laws and seek professional help or advice before starting any installation of this product.

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 0

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 1

Coil Diameter No. of Loops Standard Length No. of Clips Barbed Type Notes
450mm 56 8-9m 3 BTO-10, 22,30 Concertina Type
500mm 56 9-10m 3 BTO-10, 22,30 Concertina Type
600mm 56 10-11m 3 BTO-10, 22,30 Concertina Type
600mm 56 8-10m 5 BTO-10, 22,30 Concertina Type
700mm 56 10-12m 5 BTO-10, 22,30 Concertina Type
800mm 56 11-13m 5 BTO-10, 22,30 Concertina Type
900mm 56 12-14m 5 BTO-10, 22,30 Concertina Type
960mm 56 13-15m 5 BTO-10, 22,30 Concertina Type
980mm 56 14-16m 5 BTO-10, 22,30 Concertina Type



Choosing your Razor wire



Typically, the bigger the diameter the more of an obstacle/deterrent the Razor wire is. 300mm and 450mm diameter is the smaller size we recommend for domestic installations. This size is an adequate deterrent and also the easiest to fit, as standard support brackets will be suitable for this diameter and weight of the razor wire. 730mm & 900mm diameter will require specially made brackets for an installation.

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 2



If fitting to the ground then we recommend a size that can’t be vaulted over, then the suggested options would be to install a single run of 900mm diameter Razor wire or alternatively, stack smaller diameter Razor wire on top of each other either vertically or in a pyramid fashion.



Points to note when selecting Razor Wire

  • Blade thickness

0.5mm is the industry standard, anything less is likely to bend easily.

  • The core wire diameter:

2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 3



  • The number of loops per coil

This determines the amount of Razor wire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razor wire.

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 4

  • Stainless Steel or Galvanized?

The environment the product is being deployed in may determine whether Stainless Steel or Galvanised is the best option. Stainless Steel is more expensive, but offers greater durability especially in salt air environments. Over time Stainless Steel will outlast Galvanised, therefore making it the best long term option. However, Galvanised is more than adequate for most regions and applications. We would always suggest you check the level of zinc coating when selecting Razorwire, all our Galvanised products are 200g/m2, if the supplier cant provide the information, you may only be getting a product with 60g/m2 which will deteriorate and rust much more quickly.



  • Blade type

Smaller blades such as BTO10 (10mm) are quite small and therefore less of a deterrent.

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 5

Larger blade profiles such as CBT65 (65mm) are much more effective & therefore reflected in the price.

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 6



Application:

Razor wire is used to top security fences. An individual attempting to get into or out of a secured area will have difficulties in getting through without adequate tools. On the other hand, barbed wire is usually used to restrain cattle and as inexpensive fencing.

Razor wire has been used by the military over the barbed wire in the recent past as the former is slightly lighter for the same effective coverage and occupies less space in storage. Compared to barbed wire, razor wire can be more injurious and hard to pass. Instances where cattle and people have toppled over barbed wire have been common. It is very difficult to get across razor wire without being seriously cut.



Packing of the Concertina Raozr Wire

  • Waterproof paper inside, outside wrapped with plastic woven bag
  • Wooden Pallet
  • Nude packing

450mm Nato Coiled Hdg BTO-11 Stainless Steel Razor Wire 7
