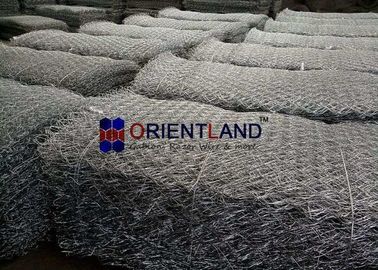

Earth Retaining Wall Gabions Galvanized Hexagonal Wire Mesh

Earth Retaining Wall Gabions Galvanized Hexagonal Wire Mesh
Earth Retaining Wall Gabions Galvanized Hexagonal Wire Mesh Earth Retaining Wall Gabions Galvanized Hexagonal Wire Mesh

Large Image :  Earth Retaining Wall Gabions Galvanized Hexagonal Wire Mesh

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG032
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Wire Mesh Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 60×80mm, 80×100mm, 100×120mm, 120×140mm Application: Flood Control Retaining Wall, River Bank Renovation, Slope Protection
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Sample: Available And Free
High Light:

Hexagonal gabion wire mesh

,

2.7mm wire mesh retaining wall

Gabion Wire Mesh Baskets Hexagonal Wire Mesh Earth Retaining Wall Gabions


Products Description:

Earth Retaining Wall Gabions Galvanized Hexagonal Wire Mesh 0

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3



  • Gabion Boxes:

These are blocks made of gabion mesh, which can be filled on the site with rocks, stones, debris and crushed concrete.
(Note: similar boxes can also be made out of welded wire mesh)

  • Gabion Mattresses:

Mattresses out of gabions are used to provide protection on water courses.

  • Gabion Rock fall netting:

As the name suggests, this kind of netting made out of gabion mesh finds application in preventing rocks and debris from spilling.

  • Gabion Sack:

Used in controlling water flow.

Earth Retaining Wall Gabions Galvanized Hexagonal Wire Mesh 1

Applications / Uses of Gabions :

Gabions have been around for over a hundred years and have a wide range of applications and new ones are continually being found. We have listed below the most common applications to date, manufactured using either woven double twisted or welded square mesh.



  • Retaining wall structures
  • Gabion revetments
  • Canal and river walling
  • Rock-fall protection
  • Weir Structures
  • Gabion fencing
  • Coastal protection
  • Protection of bridge and culverts
  • Bridge abutments

Earth Retaining Wall Gabions Galvanized Hexagonal Wire Mesh 2

Gabion Wire Mesh advantages:
• Strength – possess the strength and flexibility to withstand forces generated by water and earth masses.
• Permeability – Naturally free-draining, which is accomplished by gravity and by evaporation, as the porous structure permits active air circulation through it.
• Ecology – Offer an environmentally-sensitive solution to soil retention slope stabilization. Constructed of natural stone fill, the gabions are naturally porous. This allows interaction between the land and surrounding water table.
• Low Construction Cost – Easy to install, requiring limited equipment, no skilled labor, minimal foundation preparation, no drainage provisions, and low stone fill costs, generally provided by a local stone or rock supplier.
