Hot Dipped Galvanized Slope Stabilization Gabion Wall

Hot Dipped Galvanized Slope Stabilization Gabion Wall
Hot Dipped Galvanized Slope Stabilization Gabion Wall Hot Dipped Galvanized Slope Stabilization Gabion Wall

Large Image :  Hot Dipped Galvanized Slope Stabilization Gabion Wall

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG028
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Wire Mesh Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 60×80mm, 80×100mm, 100×120mm, 120×140mm Application: Flood Control Retaining Wall, River Bank Renovation, Slope Protection
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Sample: Available And Free
High Light:

Gabion Wire Mesh Baskets

,

100×120mm gabion netting

Hot dipped Galvanized Gabion Wire Mesh Baskets Slope Stabilization Gabion Wall


Products Description:

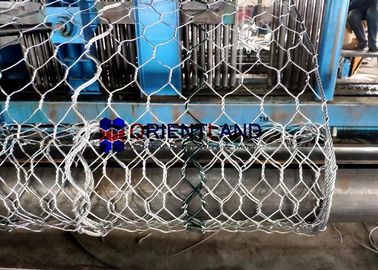

Hot Dipped Galvanized Slope Stabilization Gabion Wall 0

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

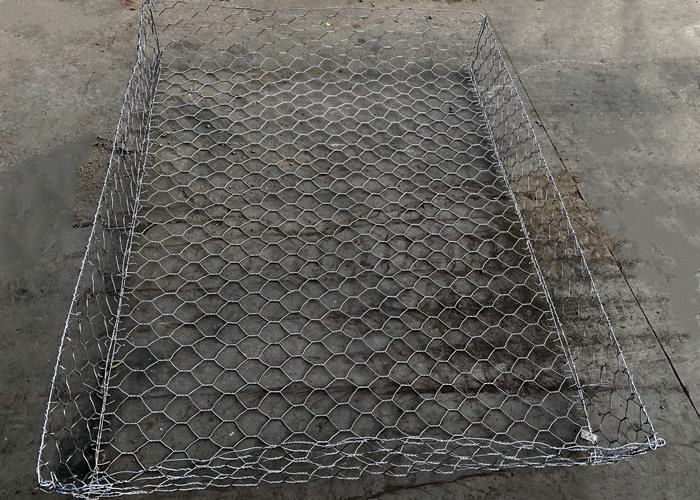

Hot Dipped Galvanized Slope Stabilization Gabion Wall 1

Gabions are wire mesh baskets or mattresses filled with stone. Gabion baskets are often used to stabilize slopes, armor pipe outlet structures or construct retaining walls. Gabion walls are permeable, strong, flexible, and often able to tolerate differential settlement. Gabion walls are typically combined with a geotextile to control erosion and scour in hydraulic applications such as streambank stabilization.

Hot Dipped Galvanized Slope Stabilization Gabion Wall 2

Gabion box application:

Gabions have been around for over a hundred years and have a wide range of applications and new ones are continually being found. We have listed below the most common applications to date, manufactured using either woven double twisted or welded square mesh.



1. Mine – Primary Crush Tip Walls
2. River Diversion Structures
3. Rockfall Mesh Netting
4. Hydrochambers (Water Storage)
5. Biofilters (Sewage Plants)
6. Longitudinal River Structures
7. Low-Level and Irish Crossings
8. Roadway Culvert In and Outlet Structures
9. Dam Embankment Protection
10. Gabion Weirs
11. Gabion Ornaments
12. Gabion Stepped Spillway
13. River Training Structures
14. Channel Lining
15. Terrace Walls
16. Reinforced Soil Walls
17. Skin – Revetment Walls
18. Mass – Gravity Retaining Walls
19. Hiking Trail Steps
20. Architectural Applications
21. Wall Cladding
22. Boundary Walls
23. Gabion Furniture
24. Bridge Abutment Protection
25. Sound Barriers
26. Gabion Bars for Pubs
27. Fish Farms
28. Gabion Sign Supports

Hot Dipped Galvanized Slope Stabilization Gabion Wall 3

Gabion Wire Mesh advantages:
• Strength – possess the strength and flexibility to withstand forces generated by water and earth masses.
• Permeability – Naturally free-draining, which is accomplished by gravity and by evaporation, as the porous structure permits active air circulation through it.
• Ecology – Offer an environmentally-sensitive solution to soil retention slope stabilization. Constructed of natural stone fill, the gabions are naturally porous. This allows interaction between the land and surrounding water table.
• Low Construction Cost – Easy to install, requiring limited equipment, no skilled labor, minimal foundation preparation, no drainage provisions, and low stone fill costs, generally provided by a local stone or rock supplier.
