Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection

Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection
Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection

Large Image :  Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG022
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Wire Basket Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 80×100mm, 100×120mm, 120×140mm Application: Flood Control Retaining Wall, River Bank Renovation, Slope Protection
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Sample: Available And Free
High Light:

pvc coated gabion baskets

,

reno gabion mattress

Durable Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection


Products Description:

Gabions are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles.
Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour.



They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures.
Due to the many environmental benefits associated with gabions, they are being used in many various applications and industries.

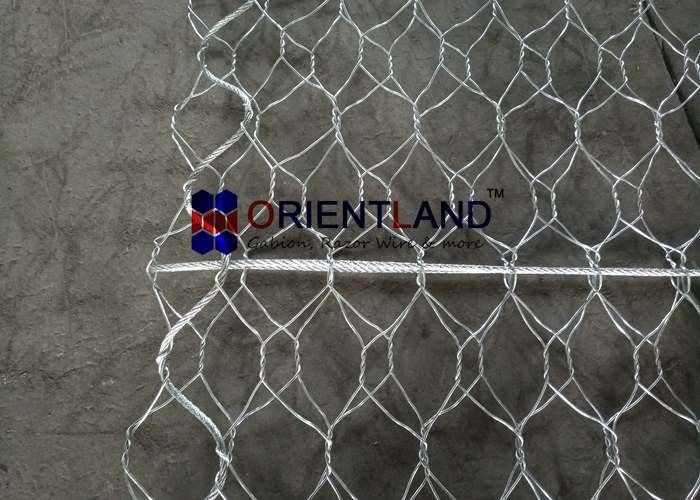

Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection 0

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3



Gabion box application:

  • Retaining wall structures
  • River and canal training works
  • Erosion and scour protection; roadway protection; bridge protection
  • Hydraulic structures, dams and culverts
  • Coastal defence and protection works
  • Rockfall and soil erosion protection

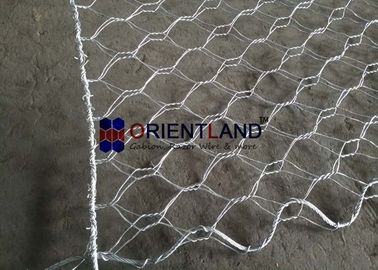

Flexible Gabion Box Soil Stabilization Hexagonal Woven Wire Gabion Mesh Slope Protection 1
