Product Details:
Payment & Shipping Terms:
|
| Type: | Gabion Wall Basket | Material: | Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire |
|---|---|---|---|
| Hole Shape: | Hexagonal | Wire Gauge: | 2.0/2.7/3.0/4.0mm |
| Aperture: | 80×100mm, 100×120mm, 120×140mm | Application: | Flood Control Retaining Wall, River Bank Vation, Slope Protection |
| Box Size: | 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m | Sample: | Available And Free |
| High Light: | gabion stone cages,rock gabion baskets |
||

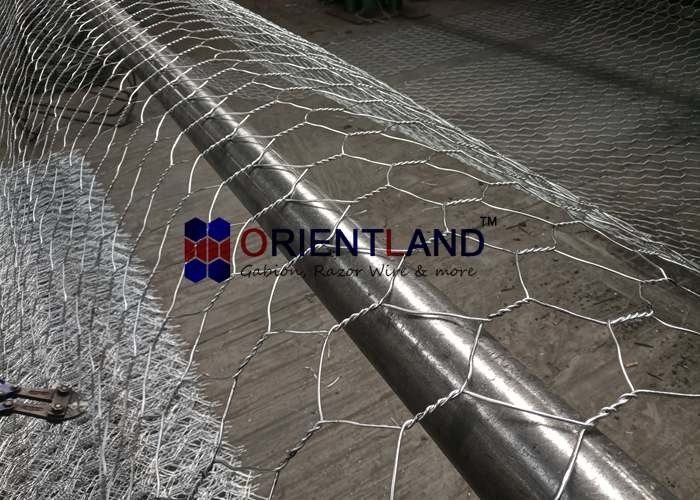

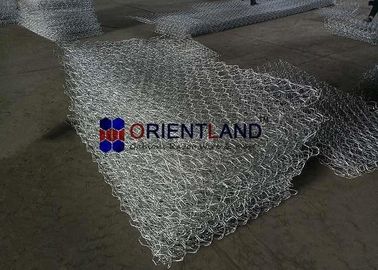

River Training Gabion Baskets Roadway Drainage Gabion Mesh
Products Description:
Gabions are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams.
Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour.
They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
River Standard Sizes
Length(m) x Width(m) x Height(m) = Volume (m³) or Length x Width = Plan Area (m2)
|
2x1x0.3 (0.6m³)
|
6x2x0.17 (2.04m³) |
| 3x1x0.3 (0.9m³) | 6x2x0.23 (2.76m³) |
| 4x1x0.3 (1.2m³) | 6x2x0.30 (3.60m³) |
Gabion box application:
