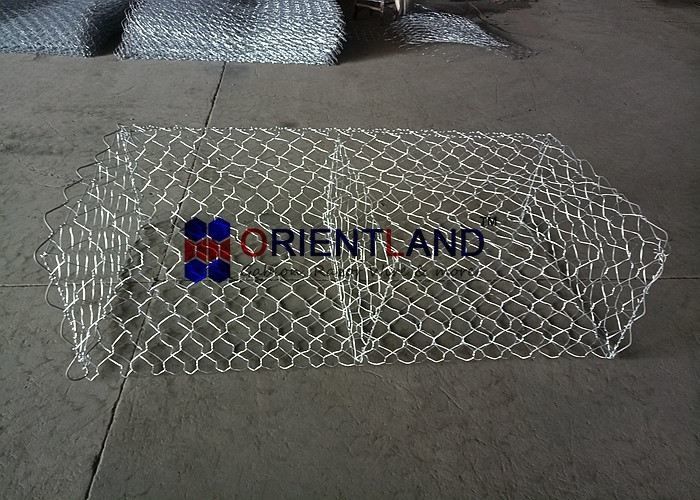

Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair

Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair
Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair

Large Image :  Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORGWB018
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Wall Basket Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 80×100mm, 100×120mm, 120×140mm Application: Flood Control Retaining Wall, River Bank Renovation, Slope Protection
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Sample: Available And Free
High Light:

gabion stone cages

,

rock gabion baskets

Gabion Box Creek Bank Repair Wire Mesh Gabion Box Retaining Wall Baskets South Africa


The Galfan stone cage network, also known as the zinc-aluminum stone cage net, is woven with a new type of anti-corrosion material. Galfan stone cage network has high corrosion resistance, and its corrosion resistance is about 2-3 times that of ordinary stone cage net.



Whether it is outdoors, in a humid environment, or in a harsh environment such as the ocean climate, the Galfan's corrosion resistance is superior to ordinary galvanizing and electroplating.


The Galfan stone cage network is extremely ductile and deformable, even beyond the steel base it protects. It can withstand the test of winding and bending under strong deformation process conditions without worrying about cracking and falling off of the zinc layer.



Standard wire diameter is 2.7mm, while 2.0mm and 2.4mm are available for certain mesh size combinations. Minimum thickness of PVC coating for woven gabions is 0.5mm.

Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair 0

Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair 1

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3



Gabion box can be supplied in various length, width and height. In order to strengthen the box, all the edge of the structure shall be selvedged with bigger diameter wire.

Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair 2



Features of the Gabion:

The pliability and flexibility of the woven mesh makes it extremely flexible and tough and the ideal solution for civil engineering applications typically on poor or uneven ground, where some deformation of the basket is required or expected. The resulting wall also tends to look more natural, giving it a dry stone wall effect. As a result it particularly suits retaining wall applications for river training and coastal defence applications.

Woven Mesh Gabion retaining walls can be designed using the traditional gravity retaining wall concept, or alternatively, they can also be used as the facing element for reinforced earth retaining structures.

Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair 3

Gabion Box Packing:

Hexagonal Wire Mesh Gabion Box Retaining Wall Baskets Creek Bank Repair 4
