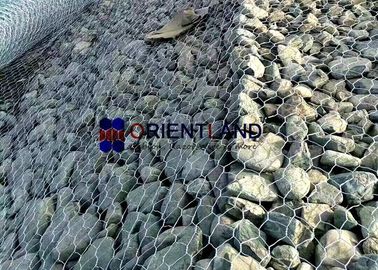

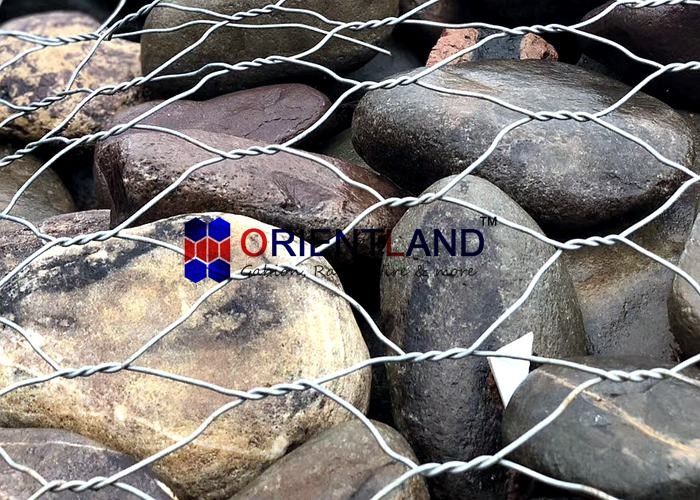

Roadway / Bridge Protection Gabion Wire Baskets Flexible Structure

Roadway / Bridge Protection Gabion Wire Baskets  Flexible Structure
Roadway / Bridge Protection Gabion Wire Baskets  Flexible Structure
video play

Large Image :  Roadway / Bridge Protection Gabion Wire Baskets Flexible Structure

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG020
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Woven Hexagonal Wire Mesh Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Aperture: 80×100mm, 100×120mm, 120×140mm
Application: Flood Control Retaining Wall, River Bank Vation, Slope Protection Sample: Available And Free
High Light:

pvc coated gabion baskets

,

gabion

Roadway Protection Bridge Protection Hydraulic Structures Dams and Culverts Use Gabion Basket


Products Description:

We offer a wide range of Woven Mesh Gabion baskets for sale. Cages are supplied flat packed and then laced together on site to form the required retaining wall. Prefilled baskets are available on special request. It is recommended that they be filled insitu whenever possible.

Woven mesh gabion baskets and es are available with a choice of different wire coatings. Standard coatings are HDG (Hot Dip Galvanised), Alu-Zinc (95% Zn + 5% Al) coated or PVC coated. Alu-Zinc coated baskets are often mistaken for galvanised ones as they look similar but can actually last up to 3-4 times longer under similar exposure conditions. PVC coated cages on the other hand can have a design life expectancy of up to 120 years, depending on exposure conditions. PVC coated baskets should be considered for longer service life requirements and for application near the sea, river or locations where exposure to corrosive chemicals, acids and salts is possible.PVC coated baskets are usually supplied with a grey PVC coating as standard but other colours are available to special order.

Roadway / Bridge Protection Gabion Wire Baskets  Flexible Structure 0



Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3



Mesh Size Tolerance Wire Dia. Length Width Height Diaphragms
60×80mm +16%/-4% 2.0-2.5mm 3-6m 1-3m 0.17-0.3m 2-5

Roadway / Bridge Protection Gabion Wire Baskets  Flexible Structure 1

Gabion box application:

  • Control and guide of water or flood
  • Preventing of rock breaking
  • Rock fall protection
  • Water and soil protection
  • Bridge protection
  • Strengthening structure of soil
  • Protection engineering of seaside area.
  • Port project
  • Keep off dust wall
  • Roadway protection.

Roadway / Bridge Protection Gabion Wire Baskets  Flexible Structure 2

Gabion advantage
1). Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3). This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.



Gabion Box Packing:

Roadway / Bridge Protection Gabion Wire Baskets  Flexible Structure 3



FAQ:

1.How to make a inquiry of your Gabion?

You need to provide your prefored Material, Aperture size, Wire Diameter, Dimension and the Quantity, you can also indicate if you have

any special requirement. We'll provide formal quotation list once received your inquiry.

2.Could you provide free sample?

Yes,we can provide free sample.

3.How is your payment term?

Generally,our payment term is 30%T/T in advance and the balance against the copy of B/L. LC also could be acceptable. Other payment term could be negotiated.

4.How is your delivery time?

We always prepare enough stock material for your urgent order. Normally 1000pcs 2×1×1m gabion baskets only need 3 days to producr. For you specific order, we'll make the best solution.
