Product Details:
Payment & Shipping Terms:
|
| Type: | Woven Hexagonal Wire Mesh | Material: | Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire |
|---|---|---|---|
| Hole Shape: | Hexagonal | Wire Gauge: | 2.0/2.7/3.0/4.0mm |
| Box Size: | 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m | Aperture: | 80×100mm, 100×120mm, 120×140mm |
| Application: | Flood Control Retaining Wall, River Bank Vation, Slope Protection | Sample: | Available And Free |
| High Light: | pvc coated gabion baskets,gabion wire mesh panels |
||

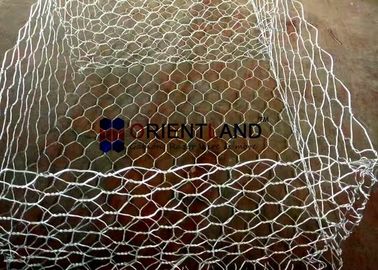

Gabion Box and es used for Scour Protection Erosion Control
Products Description:
Standard wire diameter is 2.7mm, while 2.0mm and 2.4mm are available for certain mesh size combinations. Minimum thickness of PVC coating for woven gabions is 0.5mm.
Mesh Size Options
Options are also available with mesh size. The most common mesh size is 80mmx100mm for gabions and 60mmx80mm for es. 100mmx120mm is also available to special order.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
| Mesh Size | Tolerance | Wire Dia. | Length | Width | Height | Diaphragms |
| 60×80mm | +16%/-4% | 2.0-2.5mm | 3-6m | 1-3m | 0.17-0.3m | 2-5 |
Gabion box application:
Gabion advantage
1). Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3). This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.
Gabion Box Packing:
FAQ:
1.How to make a inquiry of your Gabion?
You need to provide your prefored Material, Aperture size, Wire Diameter, Dimension and the Quantity, you can also indicate if you have
any special requirement. We'll provide formal quotation list once received your inquiry.
2.Could you provide free sample?
Yes,we can provide free sample.
3.How is your payment term?
Generally,our payment term is 30%T/T in advance and the balance against the copy of B/L. LC also could be acceptable. Other payment term could be negotiated.
4.How is your delivery time?
We always prepare enough stock material for your urgent order. Normally 1000pcs 2×1×1m gabion baskets only need 3 days to producr. For you specific order, we'll make the best solution.
