Durable Gabion Wire Baskets Rock For Scour Protection Erosion Control

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

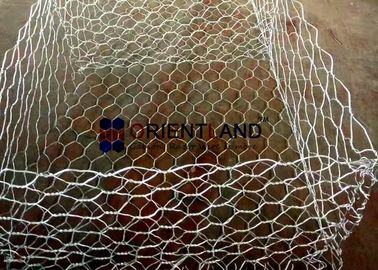

Durable Gabion Wire Baskets Rock For Scour Protection Erosion Control

Durable Gabion Wire Baskets Rock  For Scour Protection Erosion Control
Durable Gabion Wire Baskets Rock  For Scour Protection Erosion Control Durable Gabion Wire Baskets Rock  For Scour Protection Erosion Control Durable Gabion Wire Baskets Rock  For Scour Protection Erosion Control

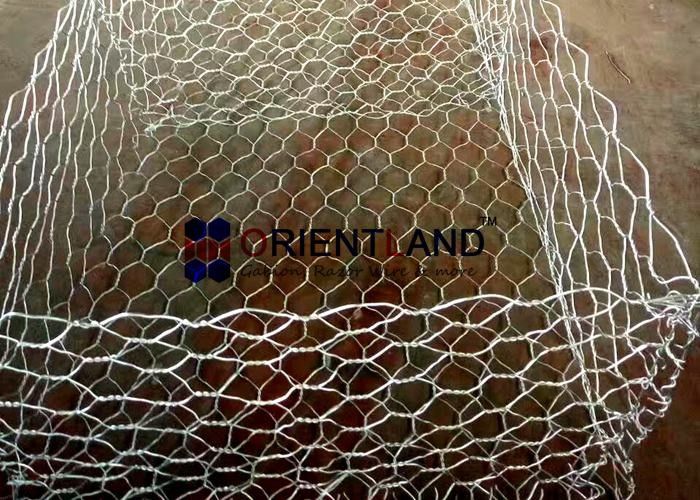

Large Image :  Durable Gabion Wire Baskets Rock For Scour Protection Erosion Control

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG018
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Woven Hexagonal Wire Mesh Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Aperture: 80×100mm, 100×120mm, 120×140mm
Application: Flood Control Retaining Wall, River Bank Vation, Slope Protection Sample: Available And Free
High Light:

pvc coated gabion baskets

,

gabion wire mesh panels

Gabion Box and es used for Scour Protection Erosion Control


Products Description:

Standard wire diameter is 2.7mm, while 2.0mm and 2.4mm are available for certain mesh size combinations. Minimum thickness of PVC coating for woven gabions is 0.5mm.

Mesh Size Options
Options are also available with mesh size. The most common mesh size is 80mmx100mm for gabions and 60mmx80mm for es. 100mmx120mm is also available to special order.

Durable Gabion Wire Baskets Rock  For Scour Protection Erosion Control 0



Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3



Mesh Size Tolerance Wire Dia. Length Width Height Diaphragms
60×80mm +16%/-4% 2.0-2.5mm 3-6m 1-3m 0.17-0.3m 2-5

Durable Gabion Wire Baskets Rock  For Scour Protection Erosion Control 1

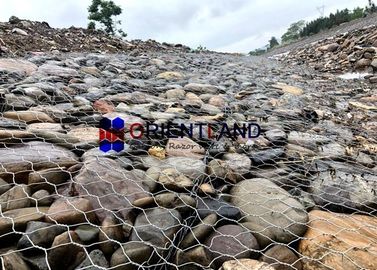

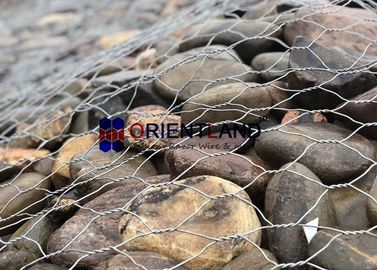

Gabion box application:

  • Control and guide of water or flood
  • Preventing of rock breaking
  • Rock fall protection
  • Water and soil protection
  • Bridge protection
  • Strengthening structure of soil
  • Protection engineering of seaside area.
  • Port project
  • Keep off dust wall
  • Roadway protection.

Durable Gabion Wire Baskets Rock  For Scour Protection Erosion Control 2

Gabion advantage
1). Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3). This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.



Gabion Box Packing:

Durable Gabion Wire Baskets Rock  For Scour Protection Erosion Control 3



FAQ:

1.How to make a inquiry of your Gabion?

You need to provide your prefored Material, Aperture size, Wire Diameter, Dimension and the Quantity, you can also indicate if you have

any special requirement. We'll provide formal quotation list once received your inquiry.

2.Could you provide free sample?

Yes,we can provide free sample.

3.How is your payment term?

Generally,our payment term is 30%T/T in advance and the balance against the copy of B/L. LC also could be acceptable. Other payment term could be negotiated.

4.How is your delivery time?

We always prepare enough stock material for your urgent order. Normally 1000pcs 2×1×1m gabion baskets only need 3 days to producr. For you specific order, we'll make the best solution.
