PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

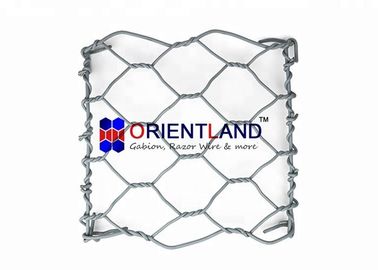

PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications

PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications
PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications

Large Image :  PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORGWB015
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Wall Basket Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 80×100mm, 100×120mm, 120×140mm Application: Flood Control Retaining Wall, River Bank Renovation, Slope Protection
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Sample: Available And Free
High Light:

gabion stone cages

,

rock gabion baskets

PVC coated Grey Color Woven Mesh Gabion Box Civil Engineering Applications Gabion Wall Basket


Baskets are manufactured from a triple twist chain link hexagonal woven wire mesh. The triple twisting prevents unravelling in the event of some wires getting cut or damaged.



Woven mesh gabion baskets are nowadays usually refered to as the traditional gabion. They have been in use for retaining wall construction for a long time and is a tried and tested retaining solution. You may also wish to consider our range of Welded Mesh Gabions.



PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications 0

Gabion Cages are available in range of sizes in half metre steps with the 2x1x1m gabion cage being the most common size. Other common sizes are 1.5x1x1m, 1x1x1m, 2x1x0.5m, 1x1x1m etc. Larger sizes such as 3x1x1m and 4x1x1m are also available to special order. Smaller landscaping sizes such as 2×0.5×0.5m are also available. Sizes are always denoted in Length x Width x Height where the third dimension is always the vertical height.

Woven Mesh Gabions are also available as Mattresses. Mattresses are available 3x2m or 6x2m in plan and 0.17m, 0.23m 0.3m or 0.5m thick. Mattresses are typically used for erosion control and scour protection.

PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications 1

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3



Features of the Gabion:

The pliability and flexibility of the woven mesh makes it extremely flexible and tough and the ideal solution for civil engineering applications typically on poor or uneven ground, where some deformation of the basket is required or expected. The resulting wall also tends to look more natural, giving it a dry stone wall effect. As a result it particularly suits retaining wall applications for river training and coastal defence applications.

Woven Mesh Gabion retaining walls can be designed using the traditional gravity retaining wall concept, or alternatively, they can also be used as the facing element for reinforced earth retaining structures.



Applications of Gabion basket,

  • Retaining walls
  • Erosion Control
  • Military applications
  • Beach restorations
  • Architectural applications

PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications 2

Gabion Box Packing:

PVC Coated Grey Color Woven Mesh Gabions Box Civil Engineering Applications 3
