Product Details:
Payment & Shipping Terms:
|
| Type: | Gabion Wall Basket | Material: | Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire |
|---|---|---|---|
| Hole Shape: | Hexagonal | Wire Gauge: | 2.0/2.7/3.0/4.0mm |
| Aperture: | 80×100mm, 100×120mm, 120×140mm | Application: | Flood Control Retaining Wall, River Bank Vation, Slope Protection |
| Box Size: | 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m | Sample: | Available And Free |
| High Light: | gabion stone cages,garden gabion baskets |
||
Galfan coated Gabion Stone Cages Galvanized Gabion Retaining Wall
Features of the Gabion:
The pliability and flexibility of the woven mesh makes it extremely flexible and tough and the ideal solution for civil engineering applications typically on poor or uneven ground, where some deformation of the basket is required or expected. The resulting wall also tends to look more natural, giving it a dry stone wall effect. As a result it particularly suits retaining wall applications for river training and coastal defence applications.
Woven Mesh Gabion retaining walls can be designed using the traditional gravity retaining wall concept, or alternatively, they can also be used as the facing element for reinforced earth retaining structures.
Woven Mesh Gabion Baskets or Gabion Cages and es are purpose designed stone filled wire mesh baskets or cages for use as retaining structures. They are also sometimes referred to as just stone filled bastions, stone cages or baskets. Gabion baskets are an economical, environmental and established solution for structural retaining walls and coastal defences. Designed like for like, gabions are hard to beat on cost and aesthetics when compared to other established retaining wall systems such as reinforced concrete and masonry. This is particularly so for low to medium height retaining walls.
Woven mesh gabion baskets are nowadays usually refered to as the traditional gabion. They have been in use for retaining wall construction for a long time and is a tried and tested retaining solution. You may also wish to consider our range of Welded Mesh Gabions.

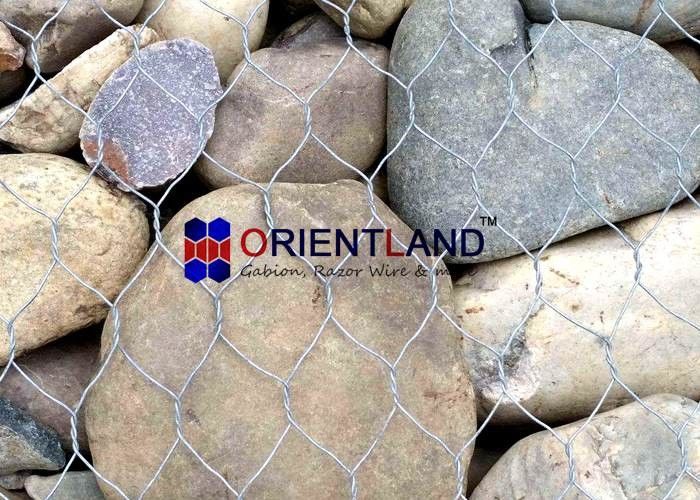

Baskets are manufactured from a triple twist chain link hexagonal woven wire mesh. The triple twisting prevents unravelling in the event of some wires getting cut or damaged.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |

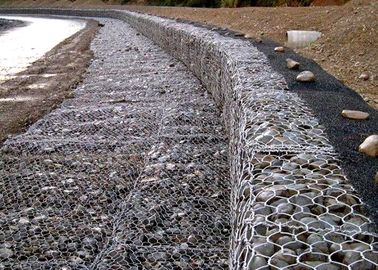

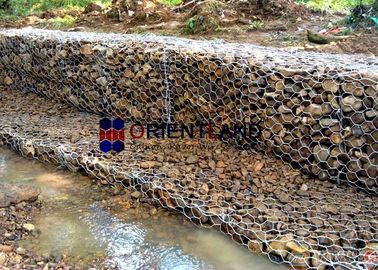

Gabion box application:
Gabion Box Packing:
