Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

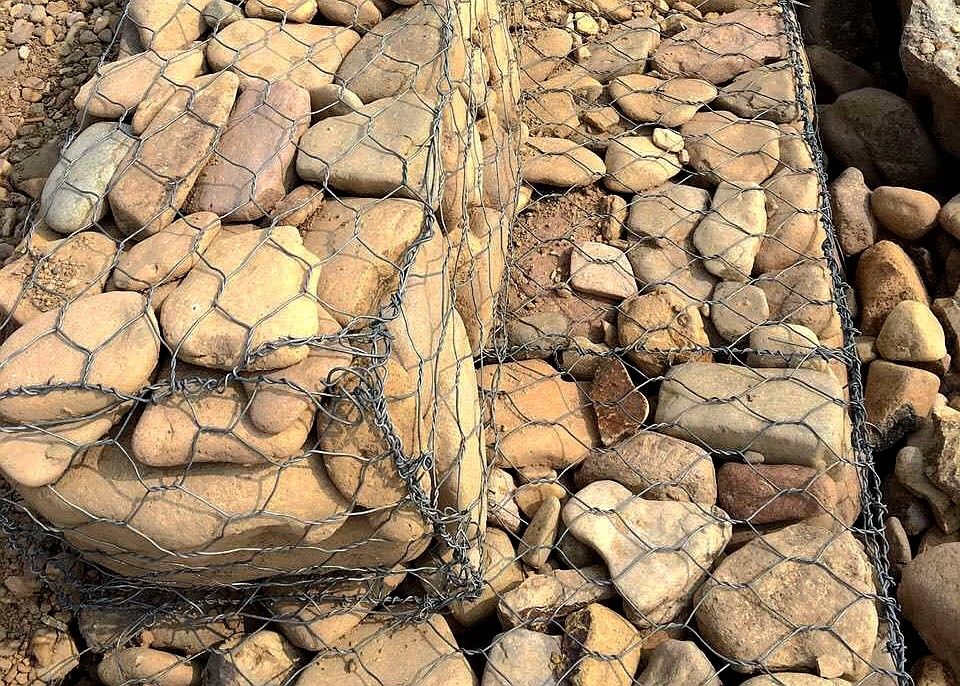

Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture

Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture
Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture

Large Image :  Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORGWB010
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Wall Basket Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 80×100mm, 100×120mm, 120×140mm Application: Flood Control Retaining Wall, River Bank Vation, Slope Protection
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Sample: Available And Free
High Light:

gabion stone cages

,

garden gabion baskets

Retaining Wall Systems Wire Mesh Baskets Hexagonal Gabion Box Rock Baskets


Features of the Gabion:

Woven Mesh Gabion retaining walls can be designed using the traditional gravity retaining wall concept, or alternatively, they can also be used as the facing element for reinforced earth retaining structures.

The pliability and flexibility of the woven mesh makes it extremely flexible and tough and the ideal solution for civil engineering applications typically on poor or uneven ground, where some deformation of the basket is required or expected. The resulting wall also tends to look more natural, giving it a dry stone wall effect. As a result it particularly suits retaining wall applications for river training and coastal defence applications.



Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture 0

Woven Mesh Gabion Baskets or Gabion Cages and es are purpose designed stone filled wire mesh baskets or cages for use as retaining structures. They are also sometimes referred to as just stone filled bastions, stone cages or baskets. Gabion baskets are an economical, environmental and established solution for structural retaining walls and coastal defences. Designed like for like, gabions are hard to beat on cost and aesthetics when compared to other established retaining wall systems such as reinforced concrete and masonry. This is particularly so for low to medium height retaining walls.

Woven mesh gabion baskets are nowadays usually refered to as the traditional gabion. They have been in use for retaining wall construction for a long time and is a tried and tested retaining solution. You may also wish to consider our range of Welded Mesh Gabions.

Baskets are manufactured from a triple twist chain link hexagonal woven wire mesh. The triple twisting prevents unravelling in the event of some wires getting cut or damaged.

Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture 1

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

Gabion box application:

  • Retaining wall structures
  • River and canal training works
  • Erosion and scour protection; roadway protection; bridge protection
  • Hydraulic structures, dams and culverts
  • Coastal defence and protection works
  • Rockfall and soil erosion protection

Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture 2



Gabion Box Packing:

Retaining Wall Systems Gabion Wall Baskets 80×100mm 100×120mm Aperture 3
