Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity

Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity
Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity

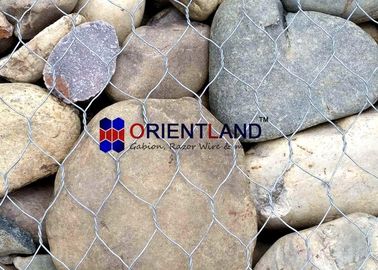

Large Image :  Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORGWB005
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Gabion Wall Basket Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 80×100mm, 100×120mm, 120×140mm Application: Flood Control Retaining Wall, River Bank Renovation, Slope Protection
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Sample: Available And Free
High Light:

gabion stone cages

,

garden gabion baskets

Gabion Mesh Cage Rock Basket Retaining Wall Curved Gabion Baskets


We offer a wide range of Woven Mesh Gabion baskets for sale. Cages are supplied flat packed and then laced together on site to form the required retaining wall. Prefilled baskets are available on special request. It is recommended that they be filled insitu whenever possible.



Woven mesh gabion baskets and mattresses are available with a choice of different wire coatings. Standard coatings are HDG (Hot Dip Galvanised), Alu-Zinc (95% Zn + 5% Al) coated or PVC coated. Alu-Zinc coated baskets are often mistaken for galvanised ones as they look similar but can actually last up to 3-4 times longer under similar exposure conditions. PVC coated cages on the other hand can have a design life expectancy of up to 120 years, depending on exposure conditions. PVC coated baskets should be considered for longer service life requirements and for application near the sea, river or locations where exposure to corrosive chemicals, acids and salts is possible.PVC coated baskets are usually supplied with a grey PVC coating as standard but other colours are available to special order.



Standard wire diameter is 2.7mm, while 2.0mm and 2.4mm are available for certain mesh size combinations. Minimum thickness of PVC coating for woven gabions is 0.5mm.

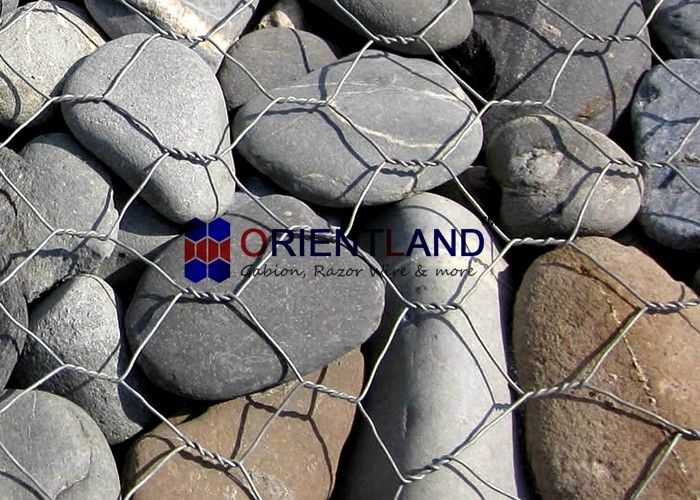

Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity 0

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3



Features of the Gabion:

The pliability and flexibility of the woven mesh makes it extremely flexible and tough and the ideal solution for civil engineering applications typically on poor or uneven ground, where some deformation of the basket is required or expected. The resulting wall also tends to look more natural, giving it a dry stone wall effect. As a result it particularly suits retaining wall applications for river training and coastal defence applications.

Woven Mesh Gabion retaining walls can be designed using the traditional gravity retaining wall concept, or alternatively, they can also be used as the facing element for reinforced earth retaining structures.

Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity 1

Gabion Box Packing:

Customized Size Gabion Mesh Cage , Curved Gabion Baskets High Rigidity 2
