Home ProductsRazor Barbed Wire

Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample

Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample
Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample

Large Image :  Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORSCRW004
Payment & Shipping Terms:
Minimum Order Quantity: 2 tons
Price: Negotiable
Packaging Details: Plastic woven bag, pallet or nude packing
Delivery Time: 7-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 tons per day
Detailed Product Description
Type: Single Coil Razor Wire Core Wire: Hot Dipped Galvanized Steel Wire, Electric Galvanized Iron Wire, Stainless Steel Wire
Blade: Hot Dipped Rolled Plate, Stainless Steel Plate Barbed Type: CBT-60
Coil Diameter: 450mm, 600mm, 900mm Length: 14-16m
Number Of Loops: 54-56loops Application: Militaty Use, Airport, Court, Garden Protection, Fence
Sample: Free
High Light:

concertina razor wire

,

prison razor wire

Barbed Wire Concertina CBT 60 Razor Concertina Wire Spiral Barbed Wire Fence

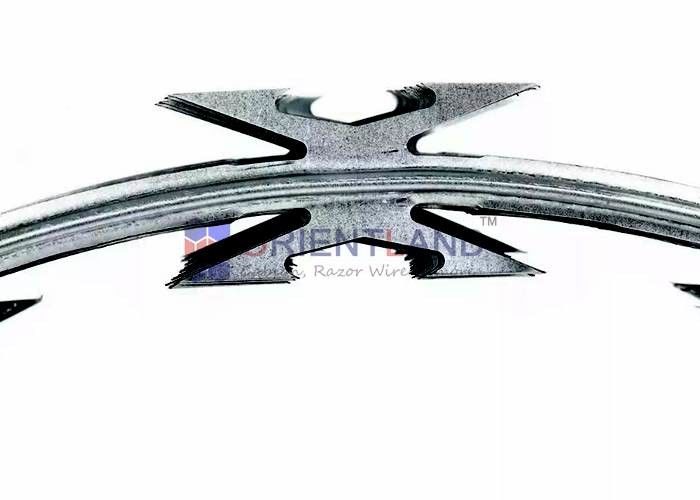

The CBT-60 has bright and beautiful blade types, offers good corrosion resistance. Razor wire CBT-60 can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils.

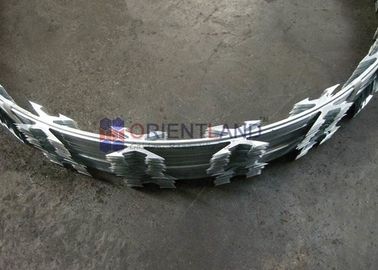

But mostly the CBT-60 is made to single coil razor wire. Single coil razor Wire is one kind of unclipped razor wire, sometimes referred to as “Helical” Razor wire is simply one single strand of Razor wire formed into a spiral. The problem with this is when extended a gap is created (as in the below picture) and intruders can spread the Razor wire apart to step through it.

Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample 0

Selecting clipped or unclipped Razor wire?

The simple answer is Clipped Razor wire offers a denser profile that has no gaps of a sufficient size for someone to be able to squeeze through.

Each loop is clipped to the next in either 3 or 5 places along the whole length of the concertina coil and therefore cant be over stretched.

Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample 1

Specification of Single Coil Razor Wire


Coil diameter No. of Loops Stretched Length Blade Type Notes
450mm 33 8m CBT-60, CBT-65 Single coil
500mm 41 10m CBT-60, CBT-65 Single coil
700mm 41 10m CBT-60, CBT-65 Single coil
900mm 53 13m CBT-60, CBT-65 Single coil


Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample 2

Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample 3

Thickness Wire Dia Barb Length Barb Width Barb Spacing
0.6mm±0.05mm 2.5mm±0.1mm 60mm±2mm 32mm±1mm 96mm±2mm

Packing of the Single Coil Raozr Wire

  • Waterproof paper
  • Carton

Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample 4

Application: Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.

Professional CBT 60 Razor Ribbon Wire , Spiral Barbed Wire Fence Free Sample 5
