Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO,SGS
Model Number: ORWW008
Payment & Shipping Terms:
Minimum Order Quantity: 30 pcs
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 20days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per week
Detailed Product Description
Type: Woven Wire Mesh Material: 65Mn High Carbon Steel Wire, Low Carbon Steel Wire, High Tensile Strength Spring Steel Wire
Wire Diameter: 1.3mm-13mm Usage: Chmical Induetry, Oil, Filtration
Width: 3ft, 1m , 4ft Length: 1m, 3m, 5m Or As Required
Aperture: 3mm-100mm Application: Vibrating Screens, Screen Decks And Trommels
Sample: Free
High Light:

woven steel mesh

,

vibrating screen wire mesh

Quarry Screen Mesh Crimped Wire Mesh Woven Screen Mesh Vibrating Screen Mesh


1. Raw Material:

65Mn high carbon steel wire, low carbon steel, high tensile strength spring steel wire, stainless steel wire.
2. Manufacture Method

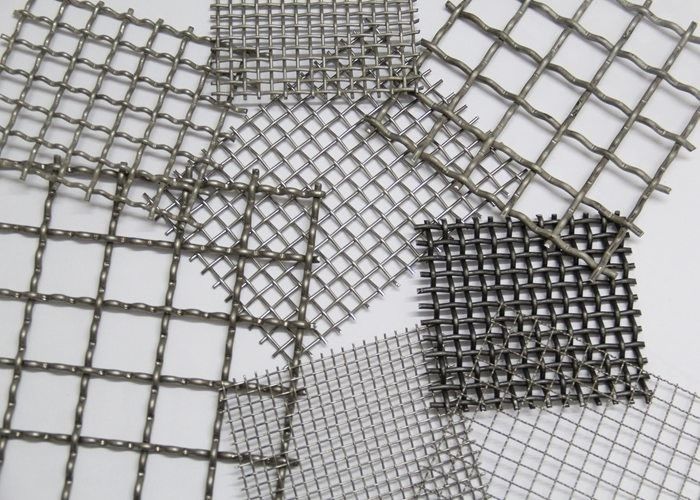

The wires are crimped before they are woven. The weave styles include, but not limited to, intermediate crimp weave in both W and F directions, lock crimp weave, flat top crimp weave, and crimp weave in both W and F directions and intermediate crimp weave in either W or F direction.

High Strength Woven Wire Mesh Quarry Screen Mesh Wide Application Range 0

3. Specification
Wire diameter ranges from 1.37mm to 12.7mm, and aperture size 3mm to 100mm. The width and length of each mesh panel could be specified by the client.

No. Steel Grade Chemical Composition (%)
C Si Mn
1 #45 0.42-0.50 0.17-0.37 0.50-0.80
2 #50 0.47-0.55
3 #55 0.52-0.60
4 #60 0.57-0.65
5 #65 0.62-0.70
6 #70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60
Steel grades #45, #50 and #55 are medium-carbon steel. Steel grades #60, #65, #70, 65Mn and 72A are high carbon steel.

4.Features

  • Screen mesh surface is smooth without snubby phenomena.
  • Mesh panel is square without obliqueity.
  • Overall structure is tight without looseness.
  • Mesh size is uniform with very small tolerance.
  • Service life is very long.

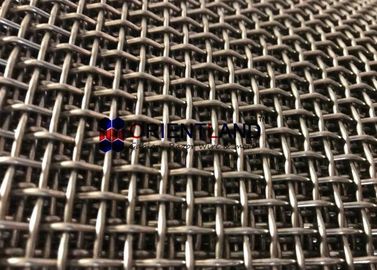

High Strength Woven Wire Mesh Quarry Screen Mesh Wide Application Range 1

5. Uses
Quarry Screen Mesh is mainly used for primary filtration of mining, such as coal, iron ore, stones, etc. And also used in asphalt mixer equipment, mine vibrating screens, screen decks and trommels.
High Strength Woven Wire Mesh Quarry Screen Mesh Wide Application Range 2
