Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive

Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive
Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive

Large Image :  Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive

Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO,SGS
Model Number: ORWW013
Payment & Shipping Terms:
Minimum Order Quantity: 30 rolls
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 rolls per week
Detailed Product Description
Type: Woven Wire Mesh Material: 65Mn High Carbon Steel Wire, Low Carbon Steel Wire, High Tensile Strength Wire, Stainless Steel Wire
Wire Diameter: 1.3mm-13mm Usage: Chmical Induetry, Oil, Filtration
Width: 3ft, 1m , 4ft Length: 1m, 3m, 5m Or As Required
Aperture: 3mm-100mm Application: Vibrating Screens, Screen Decks And Trommels
Sample: Free
High Light:

woven steel mesh

,

woven metal mesh screen

Stainless Steel Crimped Wire Mesh Car Grille Mesh Barbecue Grill Mesh


1. Raw Material:

Stainless steel wire, 65Mn high carbon steel wire, low carbon steel, high tensile strength spring steel wire.
2. Manufacture Method
The wires are crimped before they are woven. The weave styles include, but not limited to, intermediate crimp weave in both W and F directions, lock crimp weave, flat top crimp weave, and crimp weave in both W and F directions and intermediate crimp weave in either W or F direction.

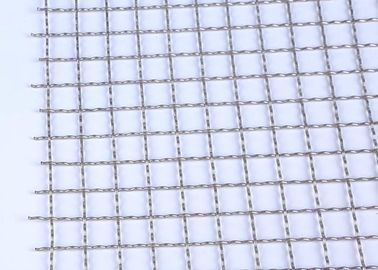

Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive 0

3. Specification
Wire diameter ranges from 1.37mm to 12.7mm, and aperture size 3mm to 100mm. The width and length of each mesh panel could be specified by the client.

No. Steel Grade Chemical Composition (%)
C Si Mn
1 #45 0.42-0.50 0.17-0.37 0.50-0.80
2 #50 0.47-0.55
3 #55 0.52-0.60
4 #60 0.57-0.65
5 #65 0.62-0.70
6 #70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60
Steel grades #45, #50 and #55 are medium-carbon steel. Steel grades #60, #65, #70, 65Mn and 72A are high carbon steel.

4.Features

  • Screen mesh surface is smooth without snubby phenomena.
  • Mesh panel is square without obliqueity.
  • Overall structure is tight without looseness.
  • Mesh size is uniform with very small tolerance.
  • Service life is very long.

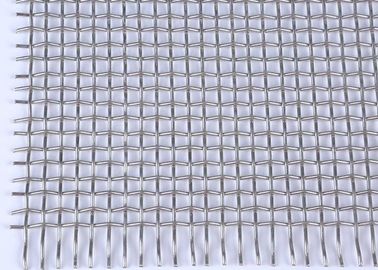

Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive 1

5. Uses
Quarry Screen Mesh is mainly used for primary filtration of mining, such as coal, iron ore, stones, etc. And also used in asphalt mixer equipment, mine vibrating screens, screen decks and trommels.

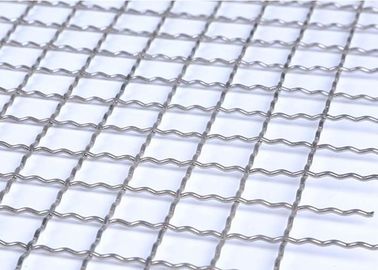

Crimped Stainless Steel Woven Wire Mesh Screen Barbecue Grill Mesh Anti Corrosive 2
