Cereals Sifting Screen Crimped Woven Wire Mesh 3mm-100mm Aperture

Cereals Sifting Screen Crimped Woven Wire Mesh 3mm-100mm Aperture
Cereals Sifting Screen Crimped Woven Wire Mesh 3mm-100mm Aperture Cereals Sifting Screen Crimped Woven Wire Mesh 3mm-100mm Aperture

Large Image :  Cereals Sifting Screen Crimped Woven Wire Mesh 3mm-100mm Aperture

Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO,SGS
Model Number: ORWW014
Payment & Shipping Terms:
Minimum Order Quantity: 30 rolls
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 rolls per week
Detailed Product Description
Type: Woven Wire Mesh Material: 65Mn High Carbon Steel Wire, Low Carbon Steel Wire, High Tensile Strength Wire, Stainless Steel Wire
Wire Diameter: 1.3mm-13mm Usage: Chmical Induetry, Oil, Filtration
Width: 3ft, 1m , 4ft Length: 1m, 3m, 5m Or As Required
Aperture: 3mm-100mm Application: Vibrating Screens, Screen Decks And Trommels
Sample: Free
High Light:

woven metal mesh screen

,

vibrating screen wire mesh

Sand Sieve Mesh Cereals Sifting Screen Crimped Wire Mesh Stainless Woven Wire Mesh


1. Raw Material:

Stainless steel wire, 65Mn high carbon steel wire, low carbon steel, high tensile strength spring steel wire.
2. Manufacture Method
The wires are crimped before they are woven. The weave styles include, but not limited to, intermediate crimp weave in both W and F directions, lock crimp weave, flat top crimp weave, and crimp weave in both W and F directions and intermediate crimp weave in either W or F direction.

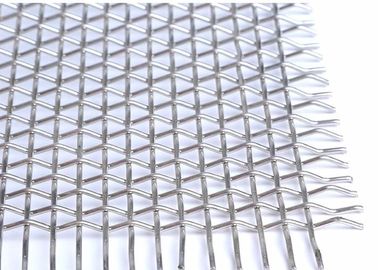

Cereals Sifting Screen Crimped Woven Wire Mesh 3mm-100mm Aperture 0

3. Specification
Wire diameter ranges from 1.37mm to 12.7mm, and aperture size 3mm to 100mm. The width and length of each mesh panel could be specified by the client.

No. Steel Grade Chemical Composition (%)
C Si Mn
1 #45 0.42-0.50 0.17-0.37 0.50-0.80
2 #50 0.47-0.55
3 #55 0.52-0.60
4 #60 0.57-0.65
5 #65 0.62-0.70
6 #70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60
Steel grades #45, #50 and #55 are medium-carbon steel. Steel grades #60, #65, #70, 65Mn and 72A are high carbon steel.

4.Features

  • Screen mesh surface is smooth without snubby phenomena.
  • Mesh panel is square without obliqueity.
  • Overall structure is tight without looseness.
  • Mesh size is uniform with very small tolerance.
  • Service life is very long.

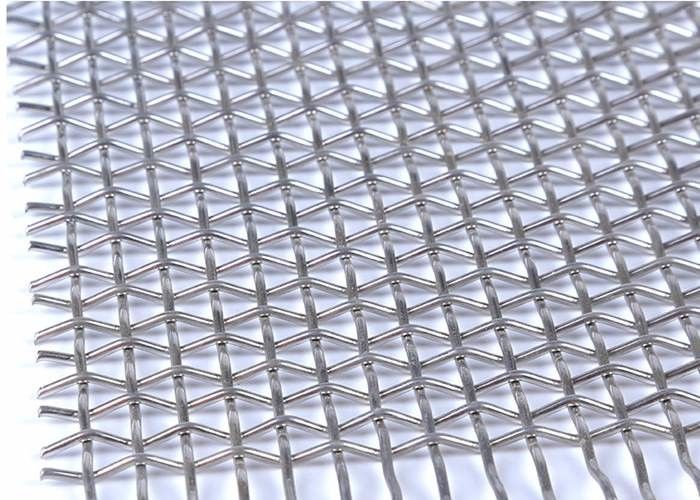

Cereals Sifting Screen Crimped Woven Wire Mesh 3mm-100mm Aperture 1

5. Uses
Quarry Screen Mesh is mainly used for primary filtration of mining, such as coal, iron ore, stones, etc. And also used in asphalt mixer equipment, mine vibrating screens, screen decks and trommels.
