| Type: | Woven Wire Mesh | Application: | Filter, Screen, Woven Wire Mesh |
|---|---|---|---|
| Material: | Low Carbon Steel Wire, Electric Galvanized Wire, Hot Dipped Galvanized Wire | Wire Diameter: | 0.02mm-2mm |
| Usage: | Chmical Induetry, Oil, Filtration | Width: | 3ft, 1m , 4ft |
| Length: | 25m, 30m | Mesh: | 1mesh-40mesh |
| Sample: | Free | Filter Rating: | 1-300μm |
| High Light: | woven steel mesh,vibrating screen wire mesh |
||

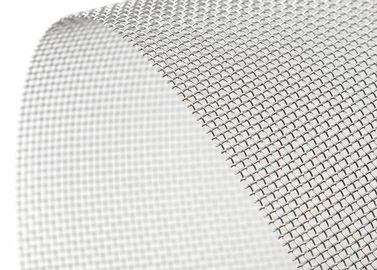

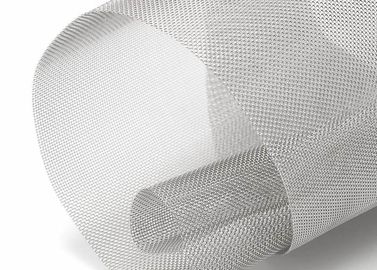

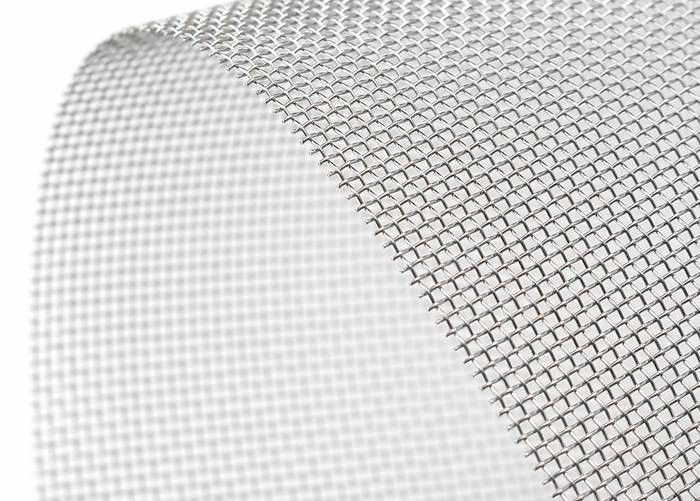

Steel Woven Wire Mesh Woven Wire Mesh Panels Steel Woven Wire Cloth Rigid Wire Mesh
Steel woven mesh sheet also know as sand mesh, wire cloth, mesh sheets, woven wire mesh in some place.
Material: Galvanized iron wire, or stainless steel wire.
Property: Square Wire Mesh is made of selected low carbon iron wire with precision construction, uniform mesh, fine rust-resisting and durable function.
Uses: Square Wire Mesh is widely used in industries and constructions to sieve grain powder, filter liquid and gas for other purposes like safe guards on machinery enclosures. Besides, it is widely applied for the substitute of wood strips in making wall and ceiling.
Assortments available:
|
Wire Gauge (BWG) Mesh Size |
Wire Gauge (BWG) Mesh Size |
| 3mesh×21BWG×3'×100' | 22mesh×33BWG×3'×100' |
| 4mesh×23BWG | 24mesh×35BWG |
| 5mesh×24BWG | 25mesh×35BWG |
| 6mesh×25BWG | 26mesh×36BWG×1m×25m |
| 8mesh×24BWG | 26mesh×36BWG×3'×100' |
| 8mesh×26BWG | 28mesh×36BWG |
| 10mesh×27BWG | 30mesh×36BWG |
| 10mesh×28BWG | 30mesh×36BWG×1m×25m |
| 12mesh×29BWG | 30mesh×36.5BWG×1m×25m |
| 14mesh×28BWG | 35mesh×36BWG×3'×100' |
| 14mesh×30BWG | 40mesh×38BWG |
| 16mesh×30BWG | 40mesh×38BWG×1m×25m |
| 18mesh×30BWG | 45mesh×38BWG×3'×100' |
| 20mesh×32BWG | 50mesh×38BWG |
| 20mesh×33BWG | 60mesh×38BWG |
| 22mesh×32BWG | |
| special specifications could be customized. | |

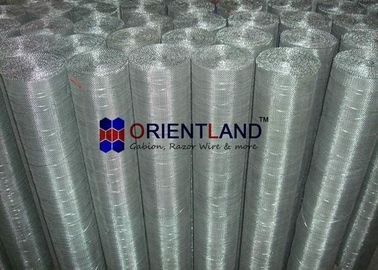

Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing can be customized.
