Product Details:
Payment & Shipping Terms:
|
| Type: | Welded Wire Mesh | Hole Shape: | Square, Rectangle |
|---|---|---|---|
| Wire Diameter: | 0.5mm-3mm | Application: | Construction Wire Mesh, Fence Mesh, Building Wire Mesh Panels |
| Material: | Black Iron Wire, Electric Galvanized Wire, Hot Dipped Galvanized Wire | Aperture: | 1"-2" |
| Width: | 0.5-2.0m | Length: | 5m-30m |
| Sample: | Free | ||
| High Light: | welded steel mesh,construction wire mesh |
||

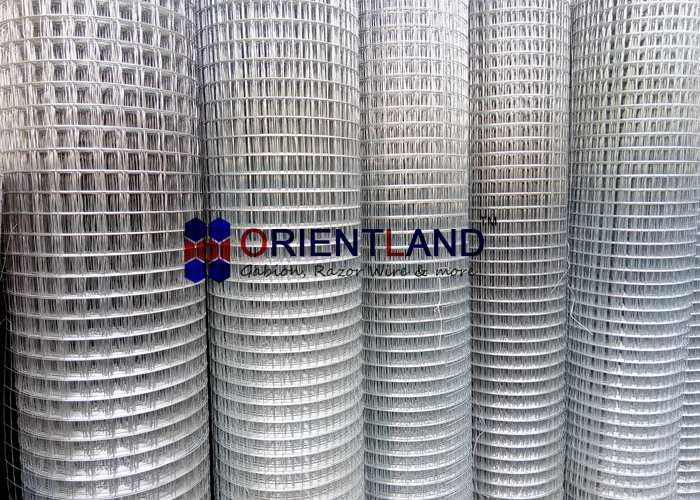

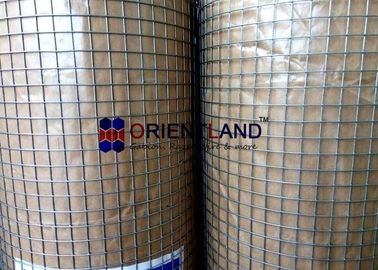

Welded Wire Mesh Screen Welded Stainless Steel Wire Mesh Galvanized Welded Wire Mesh Rolls
Products description:
Welded Wire Mesh roll is made of superior quality iron wire, electric galvanzied wire, hot dipped galvanized wire, stainless steel wire with flat surface, firm structure. After PVC powder coating or galvanization, the welded wire mesh panels can resist the corrosive. It's used extensively in building, agriculture and so on.
Specifications:
| Wire Diameter (BWG) | Mesh Opening | Width | |
| inch | mm | 0.5m-2.0m | |
| 22, 23, 24 | 1/4"×1/4" | 6.4×6.4mm | |
| 19, 20, 21, 22 | 3/8"×3/8" | 10.6×10.6mm | |
| 16, 17, 18, 19, 20, 21, 22, 23 | 1/2"×1/2" | 12.7×12.7mm | |
| 18, 19, 20, 21 | 5/8"×5/8" | 16×16mm | |
| 16, 17, 18, 19, 20, 21 | 3/4"×3/4" | 19×19mm | |
| 16, 17, 18, 19, 20, 21 | 1"×1/2" | 25.4×12.7mm | |
| 14, 15, 16, 17, 18, 19 | 1-1/2"×1-1/2" | 38×38mm | |
| 14, 15, 16 | 1"×2" | 25.4×50.8mm | |
| 12, 13, 14, 15, 16 | 2"×2" | 50.8×50.8mm | |
Processing of Welded Wire Mesh Roll
Applications
