Product Details:
Payment & Shipping Terms:
|
Type: | Welded Wire Mesh | Hole Shape: | Square, Rectangle |
---|---|---|---|
Wire Diameter: | 0.5mm-3mm | Application: | Construction Wire Mesh, Fence Mesh, Building Wire Mesh Panels |
Material: | Stainless Steel Wire | Aperture: | 1/4"-2" |
Width: | 0.3-2.0m | Length: | 5-30m |
Sample: | Free | ||
High Light: | welded wire fabric,construction wire mesh |

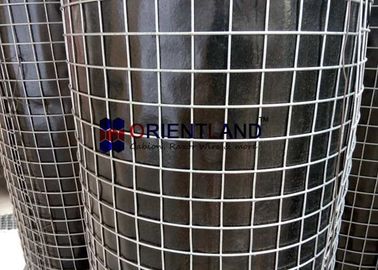

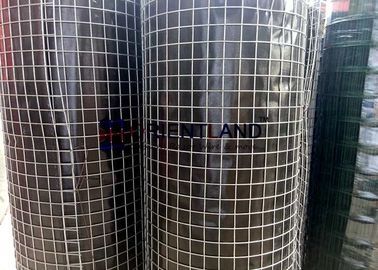

Stainless steel Welded Wire Mesh Square Welded Wire Mesh 1"×1"
Products description:
Stainless steel welded wire mesh is strong and long lasting. By it's very nature stainless steel wire needs no additional finish, such as galvanizing or PVC, to protect it.The wire itself is extremely resistant to rust, corrosion and harsh chemicals. If you need a welded mesh or fence in an area with prolonged exposure to corrosives, stainless steel products will meet the demands.
The following specifications are most commonly available. Heavier gauges and other mesh sizes can be customized.
Material: SS201, SS202, SS302, SS304, SS304L, SS316, SS316L etc.
Specifications:
Stainless steel Welded Wire Mesh Specification | ||
Mesh Size Opening | Wire Diameter (BWG) | |
Inch | Metric unit | |
1/4"×1/4" | 6.4mm×6.4mm | 22, 23, 24 |
3/8"×3/8" | 10.6mm×10.6mm | 19, 20, 21, 22 |
1/2"×1/2" | 12.7mm×12.7mm | 16, 17, 18, 19, 20, 21, 22, 23 |
5/8"×5/8" | 16mm×16mm | 18,19, 20, 21 |
3/4"×3/4" | 19mm×19mm | 16, 17, 18, 19, 20, 21 |
1"×1/2" | 25.4mm×12.7mm | 16, 17, 18, 19, 20, 21 |
1-1/2"×1-1/2" | 38mm×38mm | 14, 15, 16, 17, 18, 19 |
1"×2" | 25.4mm×50.8mm | 14, 15, 16, |
2"×2" | 50.8mm×50.8mm | 12, 13, 14, 15, 16, |
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
Weaving and Characteristics: We can also produce ultra-long and ultra-width etc.special standard welded wire mesh, the width can reach to 2.1m, the biggest wire diameter is 5.0mm, the products is fit for the top quality fence netting, supermarket product frame, decorated inside and outside, food basket, advanced for animal cultivation. It has the merit of the intensity is high, no rust, anti-corrosion acid-resisting, alkali-resisting and anti-high temperature etc.
