Product Details:
Payment & Shipping Terms:
|
| Type: | Woven Hexagonal Wire Mesh | Material: | Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire |
|---|---|---|---|
| Hole Shape: | Hexagonal | Wire Gauge: | 2.0/2.7/3.0/4.0mm |
| Box Size: | 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m | Aperture: | 80×100mm, 100×120mm, 120×140mm |
| Application: | Flood Control Retaining Wall, River Bank Vation, Slope Protection | Sample: | Available And Free |
| High Light: | gabion wire mesh panels,gabion |
||
Slope Protection Gabion Wire Baskets Retaining Wall Gabion Box
The use of gabion box structures is a highly effective and versatile way to not only strengthen the slopes, but also enhance, stabilize and protect the exploited subgrade, bridge supports, regulatory dams, coastal, and other structures. Performing protective functions of fortification, gabion structures can serve as a reverse filter, and in some cases they can be used to provide impervious events.
Currently known and widely used for more than 20 types of building slopes: grass cultivation, planting shrubs, planting, thermal protector and protective layers using geotextiles, prefabricated concrete lattice, clay soils, surface and solid lattice, flexible concrete slabs, prefabricated reinforced flexible grid, precast concrete and reinforced concrete slabs, monolithic reinforced concrete slabs, riprap, and others.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
Gabion box application:
Bank stabilization; Reinforcement of soils; Strengthening of slopes and embankments; Protection against rockfalls, avalanches, debris flows; - Retaining walls; Protection of subsea pipelines; Landscape Design; Strengthening of the bottom waters and sea ports fencing.
Gabion advantage
1).Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2).Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3).This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.

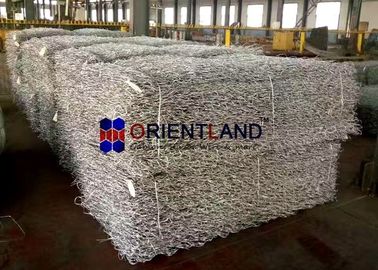

Gabion Box Packing:
