Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG003
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Woven Hexagonal Wire Mesh Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m Aperture: 80×100mm, 100×120mm, 120×140mm
Application: Flood Control Retaining Wall, River Bank Renovation, Slope Protection Sample: Available And Free
High Light:

gabion wire mesh panels

,

reno gabion mattress

Gabion Reno Mattress Flood Control Gabion Baskets Retaining Wall




Products Description:

Gabions are fabricated in such a manner that the sides, ends, lid and diaphragms can be assembled at the construction site into rectangular baskets of the sizes specified. Gabions are of single unit construction: the base, lid, ends, and sides are all connected into a single unit.

Where the length of the gabion exceeds 1-1/2 its horizontal width, the gabion is divided by diaphragms of the same mesh and gauge as the body of the gabion, into cells whose length does not exceed the horizontal width. The gabion is furnished with the

necessary diaphragms secured in proper position on the base in such a manner that no additional tying is required at this juncture.

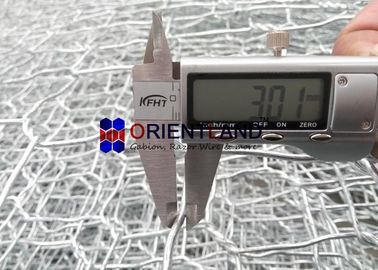

Rockfall Protection Netting Gabion Wall Cages Weather Resistance 0

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

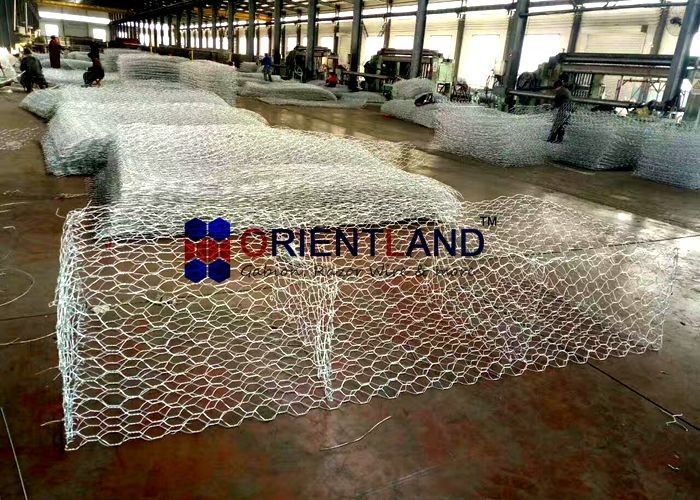

Rockfall Protection Netting Gabion Wall Cages Weather Resistance 1

Gabion box application:

  • Control and guide of water or flood
  • Preventing of rock breaking
  • Rock fall protection
  • Water and soil protection
  • Bridge protection
  • Strengthening structure of soil
  • Protection engineering of seaside area.
  • Port project
  • Keep off dust wall
  • Roadway protection.

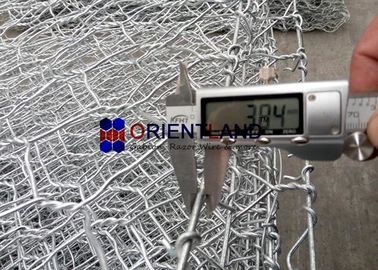

Rockfall Protection Netting Gabion Wall Cages Weather Resistance 2

Gabion advantage
1).Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2).Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3).This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.



Gabion Box Packing:

Rockfall Protection Netting Gabion Wall Cages Weather Resistance 3
