Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

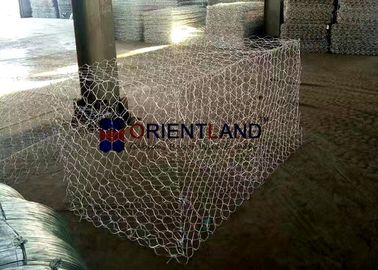

Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls

Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls
Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls

Large Image :  Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG002
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: Negotiable
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sqm per day
Detailed Product Description
Type: Woven Hexagonal Wire Mesh Material: Hot Dipped Galvanized Wire, Galfan Wire, PVC Coated Wire
Hole Shape: Hexagonal Wire Gauge: 2.0/2.7/3.0/4.0mm
Aperture: 80×100mm, 100×120mm, 120×140mm Box Size: 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m
Application: Flood Control Retaining Wall, River Bank Vation, Slope Protection Sample: Available And Free
High Light:

pvc coated gabion baskets

,

gabion

Galfan coated Gabion Box Hexagonal Gabion Wire Mesh Retaining Wall




Products Description:

Galfan offers a more homogenous, ductile and smoother coating than does galvanized zinc. The result is that the galfan is less affected by abrasion. Galfan coating offers up to 3 times better corrosion protection than standard zinc coating in salt spray test, and up to 2 times better corrosion protection than standard zinc coating in the SO2 Atmosphere test.

Galfan offers better sacrificial protection of the steel wire than standard galvanized zinc.



Galfan coated Gabion box can be supplied in various length, width and height. In order to strengthen the box, all the edge of the structure shall be selvedged with bigger diameter wire.

Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls 0

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3



Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls 1

Gabion box application:

  • Control and guide of water or flood
  • Preventing of rock breaking
  • Rock fall protection
  • Water and soil protection
  • Bridge protection
  • Strengthening structure of soil
  • Protection engineering of seaside area.
  • Port project
  • Keep off dust wall
  • Roadway protection.

Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls 2

Gabion advantage
1).Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2).Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3).This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.



Gabion Box Packing:

Galfan Coated Stone To Fill Gabion Baskets , Wire Cages For Rock Retaining Walls 3
