|Type:||Spiral Barbed Wire Tape||Core Wire:||Hot Dipped Galvanized Steel Wire, Electric Galvanized Iron Wire, Stainless Steel Wire|
|Blade:||Hot Dipped Rolled Plate, Stainless Steel Plate||Barbed Type:||BTO-10, BTO-22. BTO-30, CBT-60, CBT-65|
|Coil Diameter:||450mm, 600mm, 900mm||Length:||14-16m|
|Number Of Loops:||54-56loops||Application:||Militaty Use, Airport, Court, Garden Protection, Fence|
concertina razor wire,
prison razor wire
Spiral Barbed Wire Tape Razor Fencing Wire CBT 65 Razor Blade Wire Fence

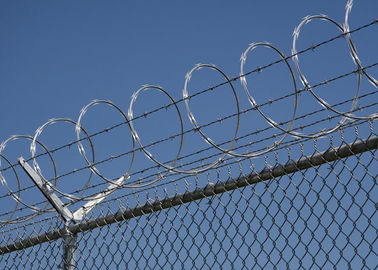

Spiral Barbed Wire Tape is one kind of unclipped razor wire, sometimes referred to as “Helical” Razor wire is simply one single strand of Razor wire formed into a spiral. The problem with this is when extended a gap is created (as in the below picture) and intruders can spread the Razor wire apart to step through it.
Selecting clipped or unclipped Razor wire?
The simple answer is Clipped Razor wire offers a denser profile that has no gaps of a sufficient size for someone to be able to squeeze through.
Each loop is clipped to the next in either 3 or 5 places along the whole length of the concertina coil and therefore cant be over stretched.
Specification of Single Coil Razor Wire
|Coil Diameter||450mm, 500mm, 700mm, 960mm|
|No. of Loops||33, 41, 55|
|Stretched Length||8m, 10m, 13m, 15m|
|Blade Type||CBT-60, CBT-65|
|Packing||Waterproof paper, Carton|
|Blade Thickness||Core Wire Dia.||Blade Length||Blade Width||Blade Spacing|
Packing of the Single Coil Raozr Wire
Application: Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.
