High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil BTO-11 BTO-22

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil BTO-11 BTO-22

High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil  BTO-11 BTO-22
High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil  BTO-11 BTO-22 High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil  BTO-11 BTO-22

Large Image :  High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil BTO-11 BTO-22

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORFR001
Payment & Shipping Terms:
Minimum Order Quantity: 2 tons
Price: Negotiable
Packaging Details: Nude packing
Delivery Time: 7-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 tons per day
Detailed Product Description
Type: Flat Wrap Razor Wire Core Wire: Hot Dipped Galvanized Steel Wire
Blade: Hot Dipped Rolled Plate Barbed Type: BTO-10, BTO-22. BTO-30, CBT-60, CBT-65
Coil Diameter: 450mm, 600mm, 900mm Length: 14-16m
Number Of Loops: 54-56loops Application: Power Station Protection, Prison Fence,
Sample: Free
High Light:

concertina razor wire

,

prison razor wire

Flat Wrap Razor Wire High Tensile Barbed Wire Tape BTO-11 BTO-22


Flat wrap razor wire coils are made of high tensile razor wire, clapped into a flat panel formation; used on applications where the surface of

the perimeter fencing is narrow. Typical installations: residential fence, household fencing (concrete walls, gates and fences as a wall top solution).

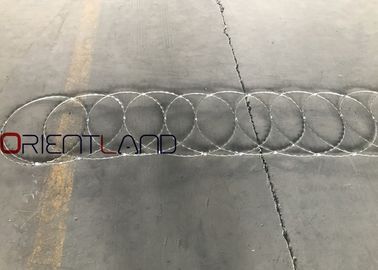

High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil  BTO-11 BTO-22 0

Specification of Flat Wrap Razor Wire

Type Material Coil Dia. Length Blade Thickness Wire Dia. Blade types
Flat wrap razor wire


Galvanzied Norma zinc coated(40-50g/m2),

high zinc coated,

Stainless steel

500mm 15m 0.4-0.5mm(±0.01mm) 2.2-2.5(±0.1mm)

BTO-11, BTO-22

BTO-28, BTO-30

700mm 15m 0.4-0.5mm(±0.01mm) 2.2-2.5(±0.1mm)

BTO-11, BTO-22

BTO-28, BTO-30

900mm 15m 0.4-0.5mm(±0.01mm) 2.2-2.5(±0.1mm)

BTO-11, BTO-22

BTO-28, BTO-30


Flat wrap razor wire features:

  • Easily installation above welded wire fence systems.
  • Hard to cut with common tools.
  • An effective barrier solution.
  • Neat and compact appearance.
  • Material available in hot-dip galvanized, stainless steel.


Flat wrap razor wire applications:

  • Power station protection.
  • Prison high security fencing.
  • Public area fencing.
  • Railway fence.
  • Restricted urban area.

High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil  BTO-11 BTO-22 1

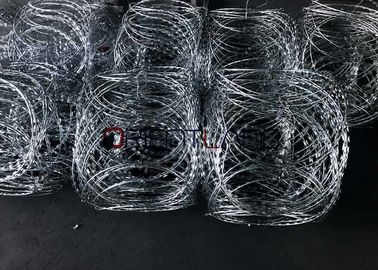

Packing: Normally make it 5 rolls or 10 rolls one package as below.

High Tensile Concertina Razor Barbed Wire / Concertina Razor Coil  BTO-11 BTO-22 2
