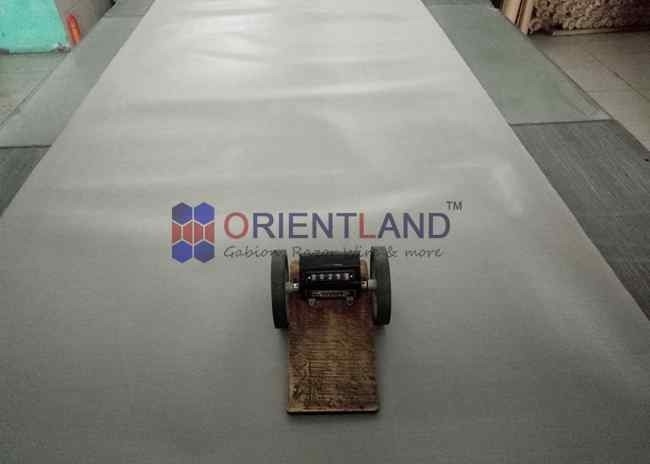

Woven Grade 304 Stainless Steel Wire Cloth Acid Resisting

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

Woven Grade 304 Stainless Steel Wire Cloth Acid Resisting

Woven Grade 304 Stainless Steel Wire Cloth Acid Resisting
Woven Grade 304 Stainless Steel Wire Cloth Acid Resisting

Large Image :  Woven Grade 304 Stainless Steel Wire Cloth Acid Resisting

Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO, SGS
Model Number: ORSS001
Payment & Shipping Terms:
Minimum Order Quantity: 10 roll
Price: Negotiable
Packaging Details: Waterproof paper, Plastic woven bag
Delivery Time: 20days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000roll per month
Detailed Product Description
Material: Stainless Steel Wire 304,316,316L Type: Wire Cloth
Application: Filter, Woven Wire Mesh, Oil Weave Style: Plain Weave, Twill Weave, Duth Weave
Wire Diameter: 0.018mm-2.5mm Width: 0.5m-3m, Can Be Customized
Mesh Size: 2mesh-200mesh Feature: Corrosion Resistance, Acid-resisting, Alkali-resisting
Sample: Free Name: Woven Grade 304 Stainless Steel Wire Cloth Acid Resisting
High Light:

woven 304 stainless steel wire cloth

,

grade 304 stainless steel wire cloth

,

304 woven cloth of stainless steel

304 Stainless Steel Wire Cloth Wire Mesh Screen Plain Weave 30m Length






steel wire cloth Material: SS 201,202,304,304L, 316,316L, 321, 430, etc

steel wire cloth Woven style: Plain, Twill, Dutch Twill, Reverse Dutch, Five-Heddle

steel wire cloth Mesh: 1-635mesh

steel wire cloth Diameter: 0.0008"-0.08"



steel wire cloth Packaging Details: Inner waterproof paper, outside plastic woven bag

steel wire cloth Applications: Filters, sieve, chemical industry, mine industry, paper-making , etc

Stainless steel wire cloth(Plain weave)
Mesh Size Wire dia.(mm) Opening(mm) Material(AISI)
7mesh×7mesh 1.0 2.63 304 or 316
10mesh×10mesh 0.6 1.94 304 or 316
12mesh×12mesh 0.5 1.62 304 or 316
16mesh×16mesh 0.4 1.19 304 or 316
16mesh×16mesh 0.35 1.24 304 or 316
18mesh×18mesh 0.35 1.06 304 or 316
20mesh×20mesh 0.4 0.87 304 or 316
24mesh×24mesh 0.26 0.80 304 or 316
30mesh×30mesh 0.3 0.55 304 or 316
35mesh×35mesh 0.17 0.56 304 or 316
40mesh×40mesh 0.23 0.40 304 or 316
50mesh×50mesh 0.2 0.31 304 or 316
60mesh×60mesh 0.15 0.27 304 or 316
70mesh×70mesh 0.12 0.24 304 or 316
80mesh×80mesh 0.13 0.19 304 or 316
90mesh×90mesh 0.12 0.16 304 or 316
100mesh×100mesh 0.1 0.15 304 or 316
120mesh×120mesh 0.09 0.12 304 or 316
150mesh×150mesh 0.063 0.11 304 or 316
180mesh×180mesh 0.053 0.09 304 or 316
200mesh×200mesh 0.053 0.07 304 or 316
