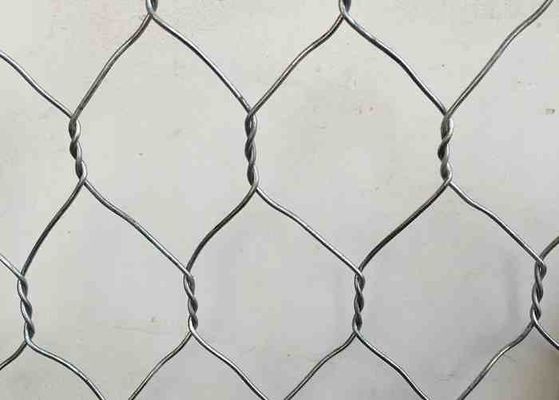

60×80mm Gabion

60×80mm Gabion
60×80mm Gabion 60×80mm Gabion 60×80mm Gabion

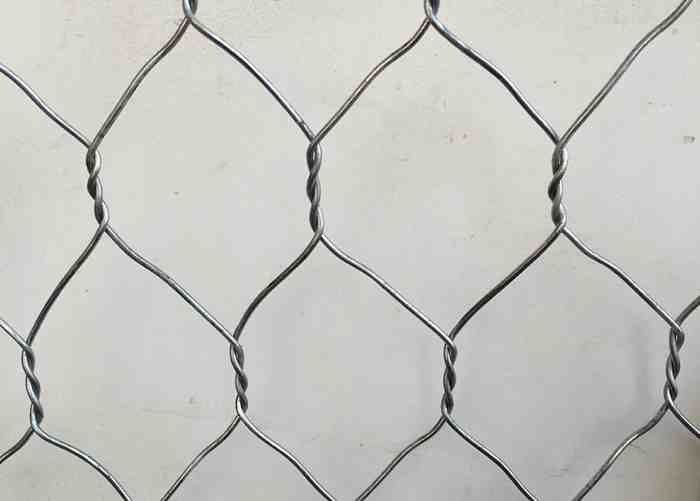

Large Image :  60×80mm Gabion

Product Details:
Place of Origin: ANPING
Certification: ISO9001:2015,SGS
Model Number: ORGWB032
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: USD 1.35-2.0 per sqm
Packaging Details: Pallet or nude packing
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sqm per day
Detailed Product Description
Type: Woven Gabion Material: Hot Dipped Galvanized Wire, Galfan Wire
Hole Shape: Hexagonal Mesh Wire Diameter: 2.2mm
Selvage Wire Diameter: 2.9mm Binding Wire Diameter: 2.2mm
Aperture: 60×80mm Twist Number: Double Twist
Application: Slope Protection Box Size: 3m×2m×0.3m
Product Name: 2×1×0.5m Gabion Wall Baskets Sample: Available And Free
High Light:

60×80mm gabion


gabion 60×80mm


2.2mm gabion

60×80mm Gabion

Products Description:

Gabion , also called , revet , is a type of container with hexagonal meshes and double or triple twisted structure. The revet has relatively smaller height compared with gabion box. The gabion is widely used in the riverbank protection, coastal protection and channel linings.

60×80mm Gabion  0

Gabion Wire Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275


Nomaly Size of Gabion


Mesh Size Length Width Height Diaphragm
60×80mm 3 2 0.17-0.23-0.3m 2
60×80mm 4 2 0.17-0.23-0.3m 3
60×80mm 5 2 0.17-0.23-0.3m 4
60×80mm 6 2 0.17-0.23-0.3m 5


60×80mm Gabion  1

60×80mm Gabion  2


60×80mm Gabion  3

60×80mm Gabion  4

Gabion application:

The woven gabion is a functional product, which is widely used for slope protection, coastal protection, river bank protection, channel lining, revetment and other protective applications.

60×80mm Gabion  5


60×80mm Gabion  6


Gabion Packing and Transport

60×80mm Gabion  7


60×80mm Gabion  8

Mostly our gabion are packed like the above picture. One pressured bundle was packed in 60-100units of gabion box. Mostly one units is a complete box, you just need open it and filled it with stones. Then linking it with the binding wire we've present.


Features of

  • Flexible, It can be made into different length, width and height to suit different applications.
  • Eco-friendly, The will not limit the growth of plant, the growing plant can make the gabion blend with surrounding environments.
  • Corrosion and rust resistance,Galvanized steel wire, PVC coating steel wire and zinc-aluminum alloy wire all can supply excellent corrosion and rust resistance performance for durable and longer service life.
  • High tensile strength, The are made of high quality steel wire, which is high tensile strength to resist the high impact from tidewater, flood.
