| Type: | Welded Mesh | Material: | Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire |
|---|---|---|---|
| Hole Shape: | Square, Rectangular | Wire Gauge: | 4.0mm,5mm Or According To Specific Require |
| Application: | Gabions, Fence, Retaining Wall, Shore Protection, Garden | Aperture: | 50×50mm, 75×75mm, 50×100mm |
| Gabion Box Size: | 1m×0.3m×0.3m, 1m×0.3m×0.5m, 1m×0.3m×0.8m, 1m×0.3m×1m, 1.5m×0.3m×1m, 2m×0.3m×1m | Packing: | Carton, Iron Pallet, Wooden Pallet |
| Sample: | Free | ||
| High Light: | landscaping gabion baskets,river control gabion basket |
||

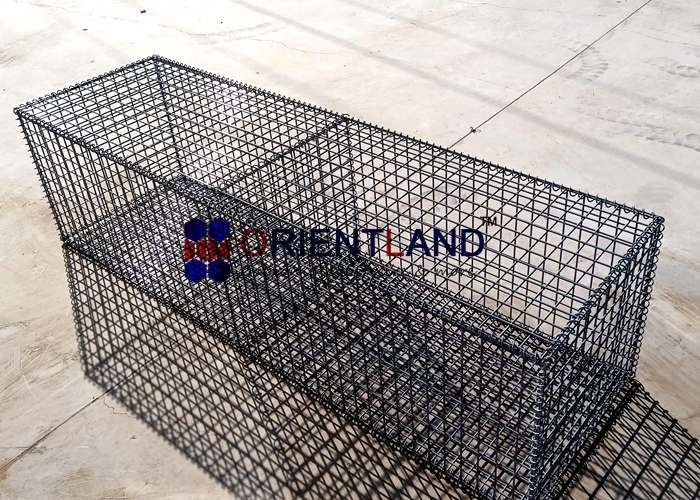

Landscaping Gabion PVC coated Welded Wire Mesh Gabion Accent Walls Room Dividers
Gabions constructed as architectural features are an excellent example of modern modular construction.
Archictural elements that can be constructed using gabions include the following:
Gabion Veneers / Fascia, Accent Walls, Room Dividers
Our gabion units can be customized in a variety of ways from finish selection to mesh size and wire diameter selection giving you an incredibly versatile building block to give your project a very unique asthetic. Architectural gabions can be filled with a variety of stone options.
The Gabion mesh sheet normally welded by Hot Dipped Galvanized Wire. For more corrosion resistance, after the mesh is welded, it is dipped in a bath of hot zinc, giving it excellent Galvanized After Weld (GAW) protection against rust and corrosion. For extremely harsh and more demanding environmental conditions, gabion mesh is also available with a thick and durable coating of PVC. This double protection assures a longer lifetime.
| Specification of Welded Gabion Basket | ||||
|---|---|---|---|---|
| Material | Mesh Wire dia. | Helical Wire dia. | Aperture | Dimension |
|
Hot dipped galvanized wire |
4.0mm |
3.0mm |
5×5cm 5×10cm, 7.62×7.62cm, 10×10cm |
1×0.3×0.3m, |
| 1×0.3×0.5m, | ||||
| 1×0.3×0.8m, | ||||
| 1×0.3×1.0m | ||||
| 1.5×0.3×1.0m | ||||
| 2.0×0.3×1.0m | ||||
| All the specification could be customized | ||||

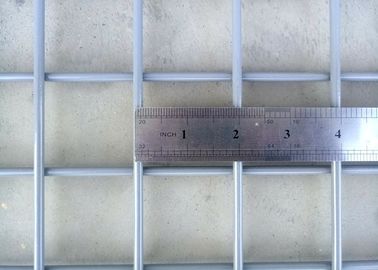

Aperture of the Welded Gabion
Helical Wire
Gabion wire mesh is available in pre-cut panels which are used to make gabion baskets.
Versatile gabion baskets can be used for channel linings, architectural and landscaping features, soil stabilization, sea walls, breakwaters, bank revetments, monolithic gabion retaining walls, storm water filters, weirs and many other commercial and residential applications.
The design potentials of gabions are limitless. Placement of baskets as well as the texture and color of the stones used for fill are variables you can manipulate to build creative designs.
