Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof

China Orientland Wire Mesh Products Co., Ltd certification
China Orientland Wire Mesh Products Co., Ltd certification
I'm Online Chat Now

Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof

Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof
Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof

Large Image :  Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWGP007
Payment & Shipping Terms:
Minimum Order Quantity: 200units
Price: Negotiable
Packaging Details: Iron or wooden pallet
Delivery Time: 15-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4800units per month
Detailed Product Description
Type: Welded Mesh Material: Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire
Hole Shape: Square, Rectangular Wire Gauge: 4.0mm Or According To Specific Require
Application: Gabions, Fence, Retaining Wall, Shore Protection, Garden Aperture: 50×50mm, 75×75mm, 50×100mm, 100×100mm
Gabion Basket Size: 2m×1m×1m, 2m×1m×0.5m, 1m×1m×1m Packing: Iron Pallet, Wooden Pallet
Sample: Free
High Light:

landscaping gabion baskets

,

river control gabion basket

Gabion Basket Fence Rock Gabion Baskets Wire Mesh Gabion Basket


Made from rust-proof and weather-proof galvanised steel, the welded gabion is very stable and durable for years of service. The mesh grid is formed by welding transverse and longitudinal wires at each and every intersection. With the wire diameter of 4 mm, the gabion is stable and sturdy. The stable gabion is designed to be filled with rocks or gravels for quick construction. And the gabion features top and bottom covers, which can keep the fillings fixed shape when sealed. Moreover, you can buy more different models to build walls and place them side by side or stack them on one another. This gabion is ideal for garden projects and will be a real eye-catcher to wherever it goes. Note that stones are not included in delivery. Assembly is very easy.



Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof 0



Specifications of Welded Gabion Basket,

Material

Hot dipped galvanized wire, Galfan wire, Black wire

Mesh Wire Dia.

3.0mm-5.0mm

Helical Wire Dia

3.0mm-4.0mm

Aperture 5×5cm, 5×10cm, 7.62×7.62cm, 10×10cm
Sureface treatment PVC powder coated, PVC powder painted
Application Garden wall, Retaining wall



Aperture of the Welded Gabion

Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof 1

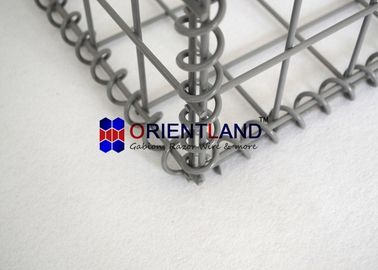

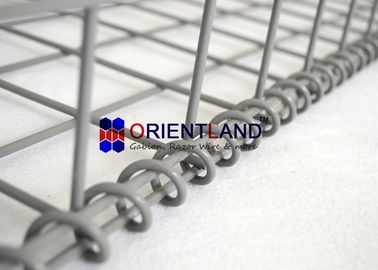

Helical Wire

Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof 2

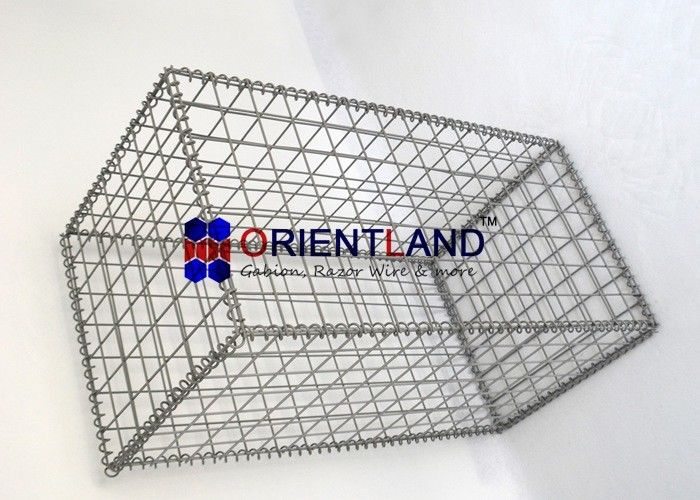

Normally each gabion basket include 6-7pcs welded panels(contains diaphragms), 12-16pcs helical binders wire and 2-4pcs corner stiffeners(can be replaced by bracing wire).

Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof 3

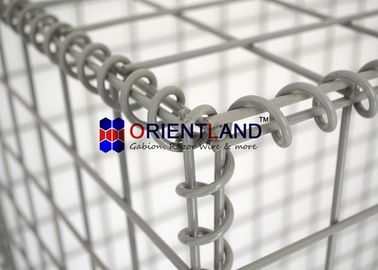

Features of Welded Gabions:

  • Easy for installation. No special technology needed.
  • Economic. Just fill the stone into the gabions and seal it.
  • Weather proof under natural destroy, corrosion resistant.
  • No collapse even under big scope of deforming.
  • Sludges in the stones is good for plant growing.
  • Mixed to form a integrity with the natural environment.
  • Less transport freight. It can be folded together for transport and further installation.

Welded Gabion Basket Application:

The use of welded Gabion Basket: landscaping, used as retaining wall, explosion-proof wall, riot wall, urban landscape and park landscape; in

the salty or highly polluted environment.

The stone cages is filled with stone or natural pebbles to protect highways, slopes, wells, bridges, etc.

Galvanised Steel Welded Gabion Baskets Fence Stable Performance Weather Proof 4
