Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements

Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements
Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements

Large Image :  Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWGP004
Payment & Shipping Terms:
Minimum Order Quantity: 200units
Price: Negotiable
Packaging Details: Iron or wooden pallet
Delivery Time: 15-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4800units per month
Detailed Product Description
Type: Welded Mesh Material: Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire
Hole Shape: Square, Rectangular Wire Gauge: 4.0mm Or According To Specific Require
Application: Gabions, Fence, Retaining Wall, Shore Protection, Garden Aperture: 50×50mm, 75×75mm, 50×100mm
Gabion Basket Size: 2m×1m×1m, 1m×1m×1m Packing: Carton, Iron Pallet, Wooden Pallet
Sample: Free
High Light:

welded gabion box

,

river control gabion basket

Welded Wire Stone Gabion Gabion Pillars Gabion Column Gabion Wall


Product Description:

Welded Gabion Pillars normally used as the garden or the back yards decorative elements. The welded gabion basket made of hot dipped galvanised wire or galfan wire, then make PVC powder painted process. It's durable, weather-resistant and it's wide range of applications. Filled with stones or similar materials and combined with other gabion baskets these wire constructs are ideal to be used as garden walls, noise barriers or for counteracting erosion as riverbank protection.

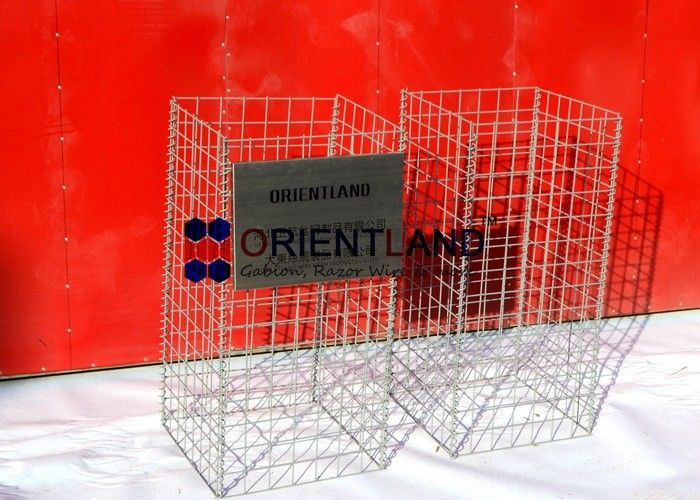

Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements 0



Specification of Welded Gabion Pillars
Material  Mesh Wire dia. Helical Wire dia. Aperture Dimension

Hot dipped galvanized wire

Galfan wire

Black wire

4.0mm

5.0mm

3.0mm

4.0mm

5×5cm
5×10cm,
7.62×7.62cm,
10×10cm
25×25×50cm,
25×25×75cm,
25×25×100cm,
30×30×50cm,
30×30×75cm
30×30×100cm
All the specification could be customized



Surface treatment of the Gabion Pillares:

  • PVC powder paint after welded (color can be custmoized)
  • PVC powder coated after welded(color can be custmoized)
  • Hot dipped galvanized after welded



Aperture of the Gabion Pillars

Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements 1

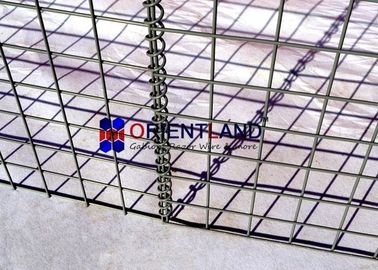

Helical Wire

Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements 2



Welded Gabion Detail Show

Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements 3

Normally each gabion pillar include 4-5pcs welded panels, 4-8pcs helical binders wire and 2-4pcs corner stiffeners(can be replaced by bracing wire).


Features of Welded Gabions Pillars:

  • Easy for installation. No special technology needed.
  • Economic. Just fill the stone into the gabions and seal it.
  • Weather proof under natural destroy, corrosion resistant.
  • No collapse even under big scope of deforming.
  • Sludges in the stones is good for plant growing.
  • Mixed to form a integrity with the natural environment.
  • Less transport freight. It can be folded together for transport and further installation.

Welded Gabion Pillars Applications:

Welded Wire Stone Gabion Pillars / Gabion Columns As Decorative Elements 4
