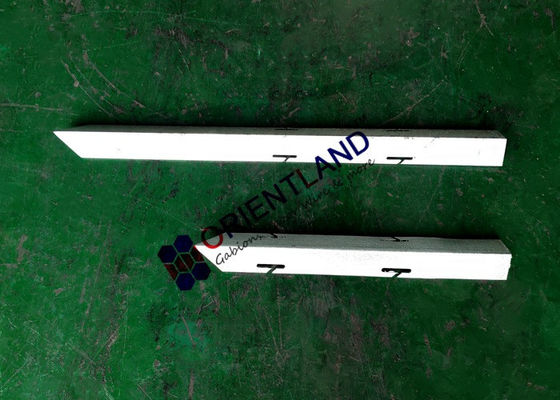

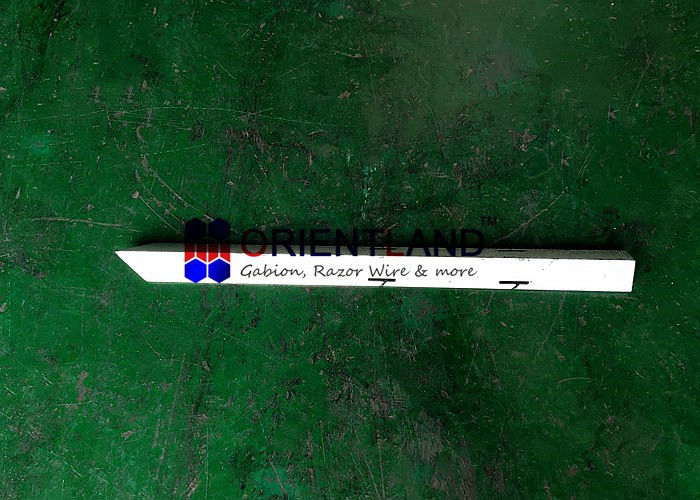

0.8m Wire Fencing Pole

0.8m Wire Fencing Pole
0.8m Wire Fencing Pole 0.8m Wire Fencing Pole 0.8m Wire Fencing Pole

Large Image :  0.8m Wire Fencing Pole

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: ORIENTLAND
Certification: ISO, SGS
Model Number: ORCP003
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD 2.9-8.9 per pc
Packaging Details: Pallet
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000Units per month
Detailed Product Description
Product Name: 0.8m Poles For Fixing Concertina Wire To Fence Material: Hot Dipped Galvanized Angle Iron
Type: Post Or Poles Shape: L Shaped
Edge Width: 35x35-50x50 Mm Length: 2m
Thickness: 5mm Number Of Cuts: 4
Corrosion Protection:: Zinc (Zn) Coating At Least 100 µm (micron) Sample: Free
High Light:

0.8m wire fencing pole

,

wire fencing pole 0.8m

,

l shaped barbed wire pole

Hot Dipped Galvanized 1.6 Length Concertina Razor Wire Poles


Products Description:

Number of pole sections for fixing the concertina razor wire from above on both sides of the L-shape::
1.
For poles with length 0.5 m (±10mm) – not less than 2 sections;

2.For poles with length 0.8 m (±10mm) – not less than 2 sections;
3. For poles with length 1.6 m (± 20mm) – not less than 4 sections;
4. For poles with length 2 m (± 20mm) – not less than 6 sections.

0.8m Wire Fencing Pole 0

Processing:hot zinc treated (Zn)/ Hot Dipped Galvanized

Material: Hot zinc-plate iron

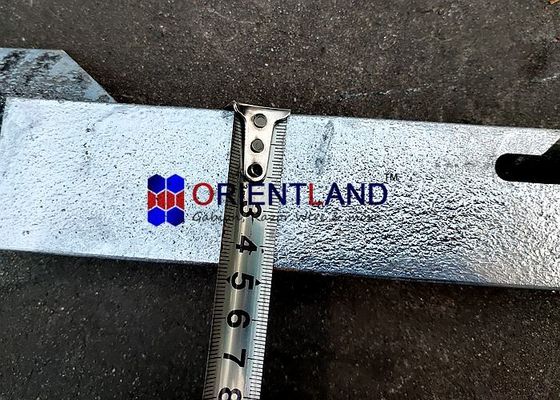

Form: L-shaped with edge width 35x35 - 50x50 mm (±2 mm)

Material thickness: 5 mm (±1 mm).

0.8m Wire Fencing Pole 1



Spacing from top of peg to first incision 150 mm (±10mm).


Spacing between sections 200 mm (±10 mm).
The shape of the section according to the imagee or equivalent .
Depth of section 17 mm (±2mm).
The widest part of the section 45 mm (±2mm).

0.8m Wire Fencing Pole 2



0.8m Wire Fencing Pole 3

Tapered tip of peg:symmetrically tapered at 45 degrees (± 2 degrees) from both sides. Length of pointed end 100 mm (±2 mm)

0.8m Wire Fencing Pole 4

Packing of the Concertina Razor Wire Poles:

0.8m Wire Fencing Pole 5
