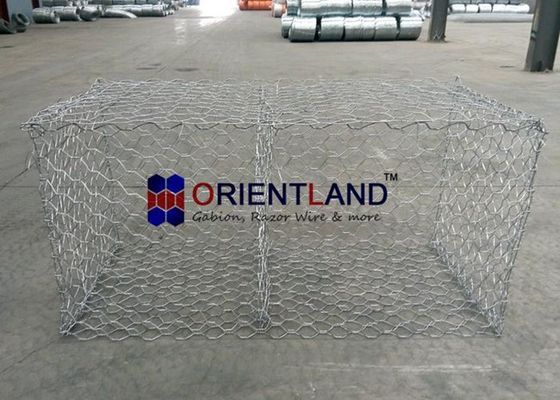

River Bank Protecetion Gabion Wire Mesh

River Bank Protecetion Gabion Wire Mesh
River Bank Protecetion Gabion Wire Mesh River Bank Protecetion Gabion Wire Mesh River Bank Protecetion Gabion Wire Mesh River Bank Protecetion Gabion Wire Mesh

Large Image :  River Bank Protecetion Gabion Wire Mesh

Product Details:
Place of Origin: ANPING
Brand Name: ORIENTLAND
Certification: ISO
Model Number: ORWG039
Payment & Shipping Terms:
Minimum Order Quantity: 2000 sqm
Price: USD1.26-2.15 per sqm
Packaging Details: Pallet or pressed bundle
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sqm per day
Detailed Product Description
Type: Woven Gabion Material: Hot Dipped Galvanized Wire, Galfan Wire
Hole Shape: Hexagonal Mesh Wire Diameter: 2.7mm
Selvage Wire Diameter: 3.4mm Binding Wire Diameter: 2.2mm
Wire Diameter Tolerance: ±0.05mm Mesh Size: 80×100mm
Mesh Size Tolerance: +16%, -4% Application: Flood Control Retaining Wall, River Bank Renovation
Basket Size: 2m×1m×1m Dimension Tolerance: ±5cm
Sample: Available And Free Product Name: 2×1×1m 80×100mm River Bank Protecetion Gabion Mesh
High Light:

2×1×1m gabion wire mesh

,

80×100mm gabion wire mesh

,

woven gabion wire mesh

2×1×1m 80×100mm River Bank Protecetion Gabion Mesh


Products Description:



Woven gabions are a type of classical products used in the river bank protection and flood controlling applications. Compared with welded gabions, there are no welding point, which can resist the erosion from flood and sea water. Additional, the twisted structure can supply higher tensile strength to be used in the heavy duty applications.


Galvanized woven gabions. According to different zinc coating weight, galvanized woven gabion can be divided into hot dipped galvanized and heavy zinc coated or high zinc coated. Heavier the zinc coating weight, better corrosion resistance performance. Since the zinc coat is very small and the bad anti-rust performance, so please do not consider about the Electric galvanized.



River Bank Protecetion Gabion Wire Mesh 0

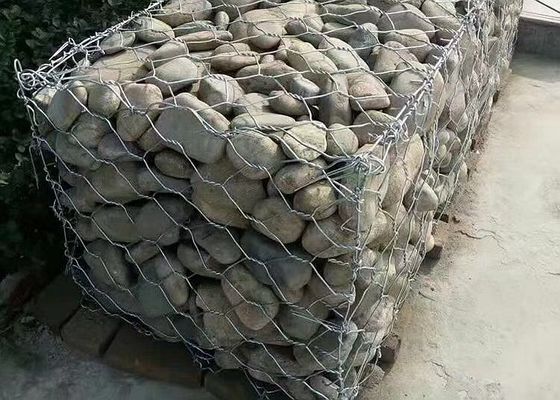

Woven Mesh Gabion Baskets or Gabion Cages and mattresses are purpose designed stone filled wire mesh baskets or cages for use as retaining structures. They are also sometimes referred to as just stone filled bastions, stone cages or baskets. Gabion baskets are an economical, environmental and established solution for structural retaining walls and coastal defences. Designed like for like, gabions are hard to beat on cost and aesthetics when compared to other established retaining wall systems such as reinforced concrete and masonry. This is particularly so for low to medium height retaining walls.

Woven mesh gabion baskets are nowadays usually refered to as the traditional gabion. They have been in use for retaining wall construction for a long time and is a tried and tested retaining solution.

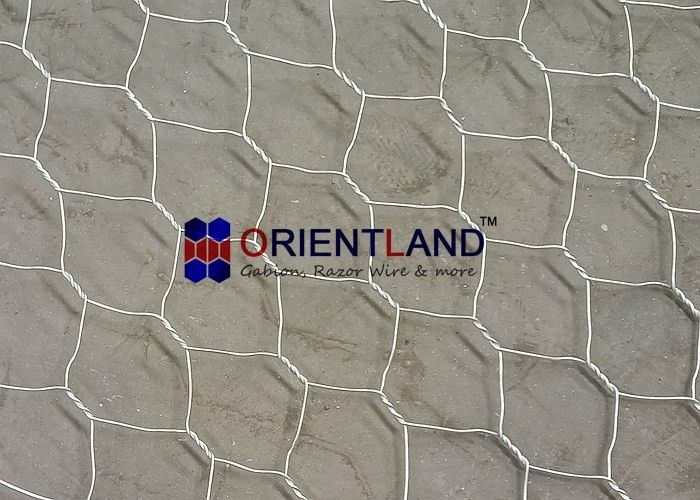

Different twist structure
The gabion can be made into double twisted structure, which has 3 strands. It can also be made into triple twisted structure, which has 5 strands. The double twisted gabion is suitable for the common applications and is more economical than the triple twisted gabion. The triple twisted gabion has higher tensile strength and stability than the other type. It is suitable for the heavy duty applications to defend the high impacts.

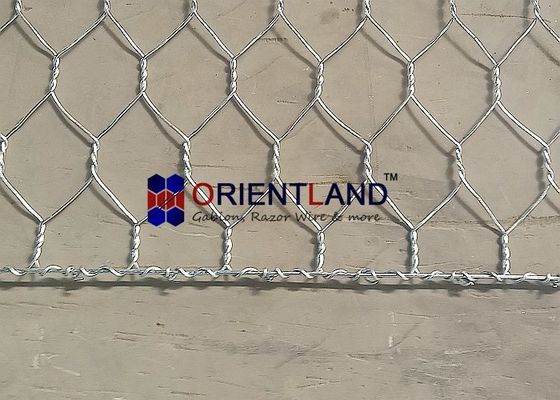

              Double twisted structure.
Triple twisted structure.

River Bank Protecetion Gabion Wire Mesh 1







Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275



Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

+16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

River Bank Protecetion Gabion Wire Mesh 2

River Bank Protecetion Gabion Wire Mesh 3

River Bank Protecetion Gabion Wire Mesh 4

Gabion box application:

  • Retaining wall structures
  • River and canal training works
  • Erosion and scour protection; roadway protection; bridge protection
  • Hydraulic structures, dams and culverts
  • Coastal defence and protection works
  • Rockfall and soil erosion protection

River Bank Protecetion Gabion Wire Mesh 5



River Bank Protecetion Gabion Wire Mesh 6

Features of the Gabion:

The pliability and flexibility of the woven mesh makes it extremely flexible and tough and the ideal solution for civil engineering applications typically on poor or uneven ground, where some deformation of the basket is required or expected. The resulting wall also tends to look more natural, giving it a dry stone wall effect. As a result it particularly suits retaining wall applications for river training and coastal defence applications.

Woven Mesh Gabion retaining walls can be designed using the traditional gravity retaining wall concept, or alternatively, they can also be used as the facing element for reinforced earth retaining structures.



Gabion Box Packing and truck loading:

River Bank Protecetion Gabion Wire Mesh 7

River Bank Protecetion Gabion Wire Mesh 8
