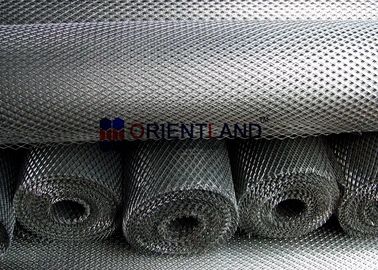

Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength

Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength
Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength

Large Image :  Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength

Product Details:
Place of Origin: ANPING, CHINA
Brand Name: ORIENTLAND
Certification: ISO, SGS
Model Number: OREX006
Payment & Shipping Terms:
Minimum Order Quantity: 100 sqm
Price: Negotiable
Packaging Details: Waterproof paper, Woven bag, Pallet
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sqm per day
Detailed Product Description
Material: Low Carbon Steel Hole Shape: Diamond Hole, Square Hole, Hexagonal Hole
Thickness: 0.3-5mm, Customer's Requirement Short Way Of Mesh: 2mm-50mm
Long Way Of Mesh: 4mm-100mm Surface Treatment: Hot Dipped Galvanized, PVC Powder Coated
Application: Protecting Mesh, Filters, Screen, Barbecue Mesh Sample: Free
High Light:

flattened expanded steel mesh

,

stretched metal mesh

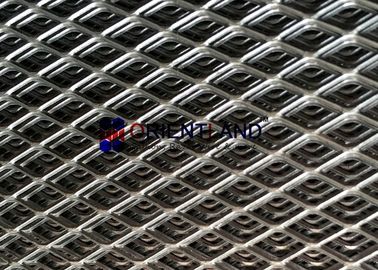

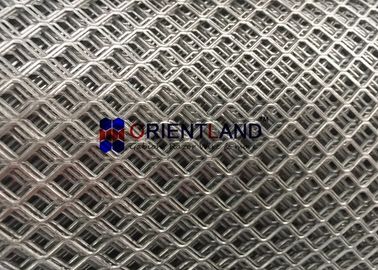

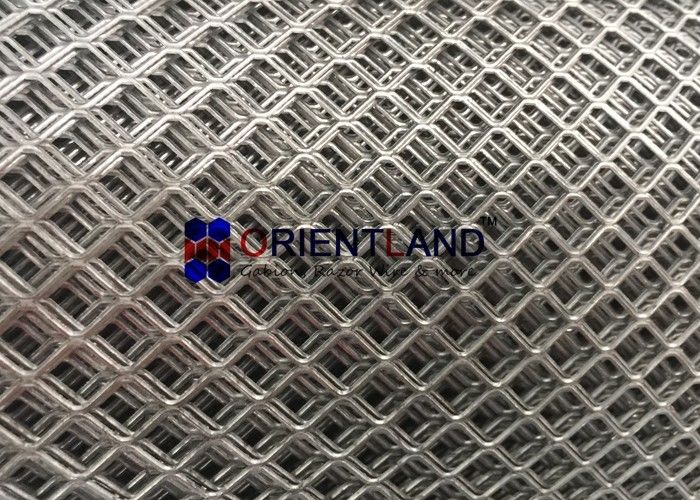

Raised Expanded Metal Mesh Expanded Metal Grating Expanded Metal Mesh Screen


Product Description:

Made by slitting and stretching metal sheets to create diamond-shaped openings,Expanded Metal forms screens, window security panels, and machine guards to name a few applications for this practical and versatile product line. In the decorative version of the product, shelving, signage, and ceiling tiles are among the most popular applications. Expanded Metal is supplied in a Standard (Raised) diamond pattern or a Flattened diamond pattern. Grating and Catwalk Expanded Metals are also part of our wide range of selections available directly from inventory. Numerous gauges, opening sizes, materials, and sheet sizes are options that will surely fit your project requirements!

Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength 0

Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength 1

SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.


StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.



Specifications
Material Low carbon steel, stainless steel, Aluminum Alloy
Thickness 0.5-8mm
Strand Width 0.3-9mm
SWD 2-56mm
LWD 3-150mm
Panel Width 4ft-8ft
Panel Length 4ft-10ft
Opening Area 45%-85%
Hole Shapes Square, Diamond,Triangle, Hexagonal, Round,Scale
Surface treatment Hot dipped Glavanized, Electric galvanized, PVC coated
Colors Could be made by RAL colors
Packing Iron or wooden pallet, wooden case



Applications:

Expanded metal is frequently used to make fences, walkways, and grates, as the material is very durable and strong, unlike lighter and less expensive wire mesh.



The many small openings in the material allow flow through of air, water, and light, while still providing a mechanical barrier to larger objects. Another advantage to using expanded metal as opposed to plain sheet metal is that the exposed edges of the expanded metal provide more traction, which has led to its use in catwalks or drainage covers.

Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength 2

Large quantities of expanded metal are used by the construction industry as metal lath to support materials such as plaster, stucco, or adobe in walls and other structures.

Raised Expanded Mesh Screen Grating Low Carbon Steel Material High Strength 3

Safety:

Freshly-cut expanded metal has a large number of exposed sharp edges, requiring caution and protective clothing, such as leather gloves and aprons to prevent skin abrasions and cuts.
